Sash
Box sash windows for Georgian, Victorian and Edwardian fronts: the original proportions and meeting-rail line, without the rattle.
- Sightline
- 48 mm
- U-value
- From 1.2 W/m²K
- Lead time
- 8 wks
- Cast-iron weights or spiral balances
- Both sashes tilt in for cleaning
- Twin brush seals against draughts

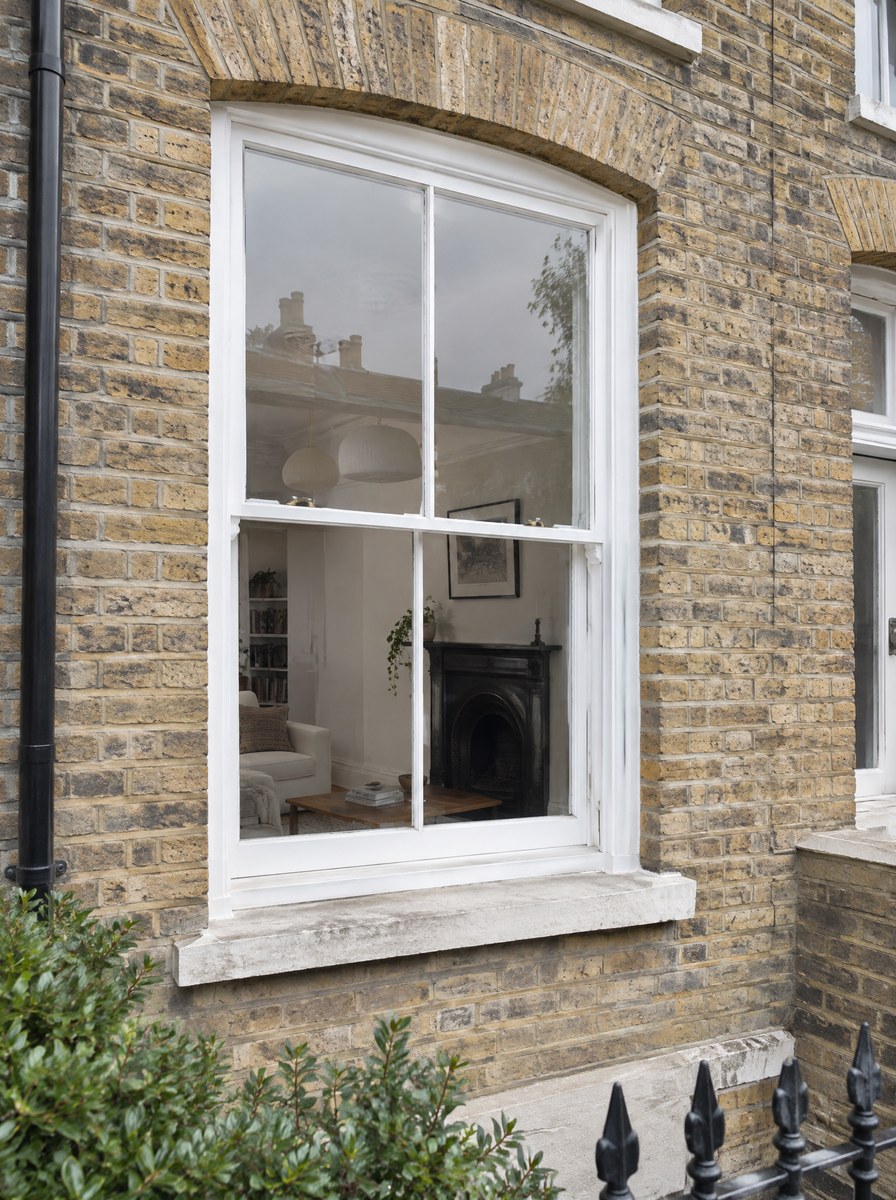

The whole sash square on and filling the frame, in the box sash on weights configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 1400 x 2400 mm overall, 65 kg per sash.
3:4

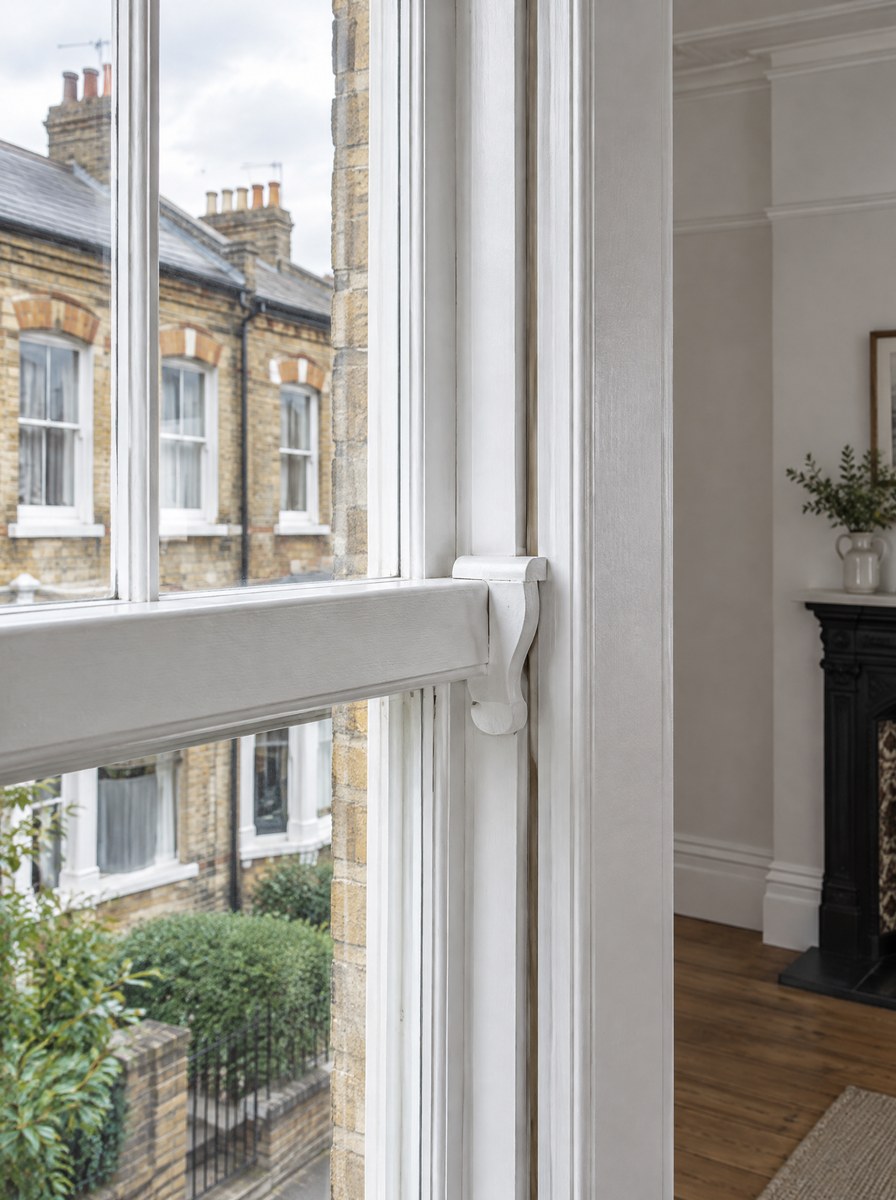

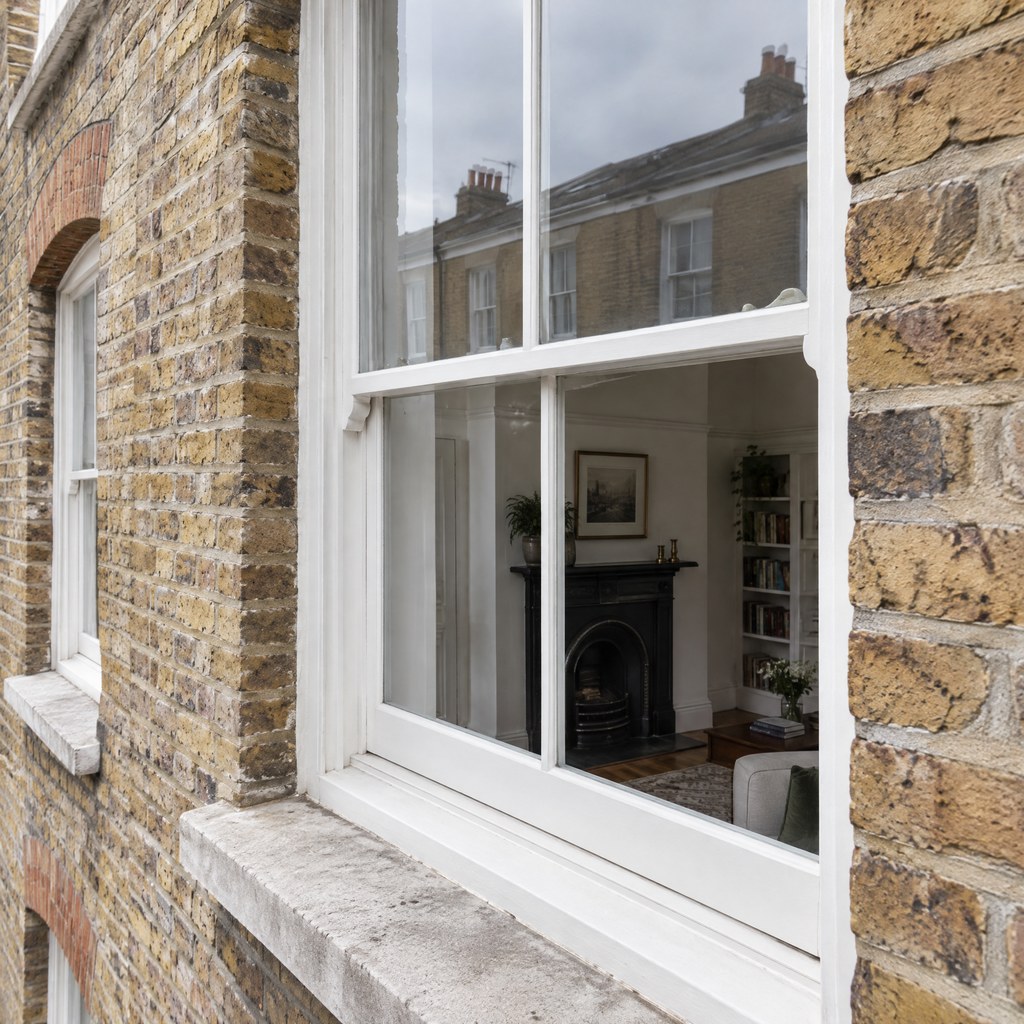

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 48 mm sightline can be measured off the frame, with the background thrown out of focus.
1:1
The hand-level detail: brass fitch or brighton fastener photographed in use on the painted, 213 ral finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

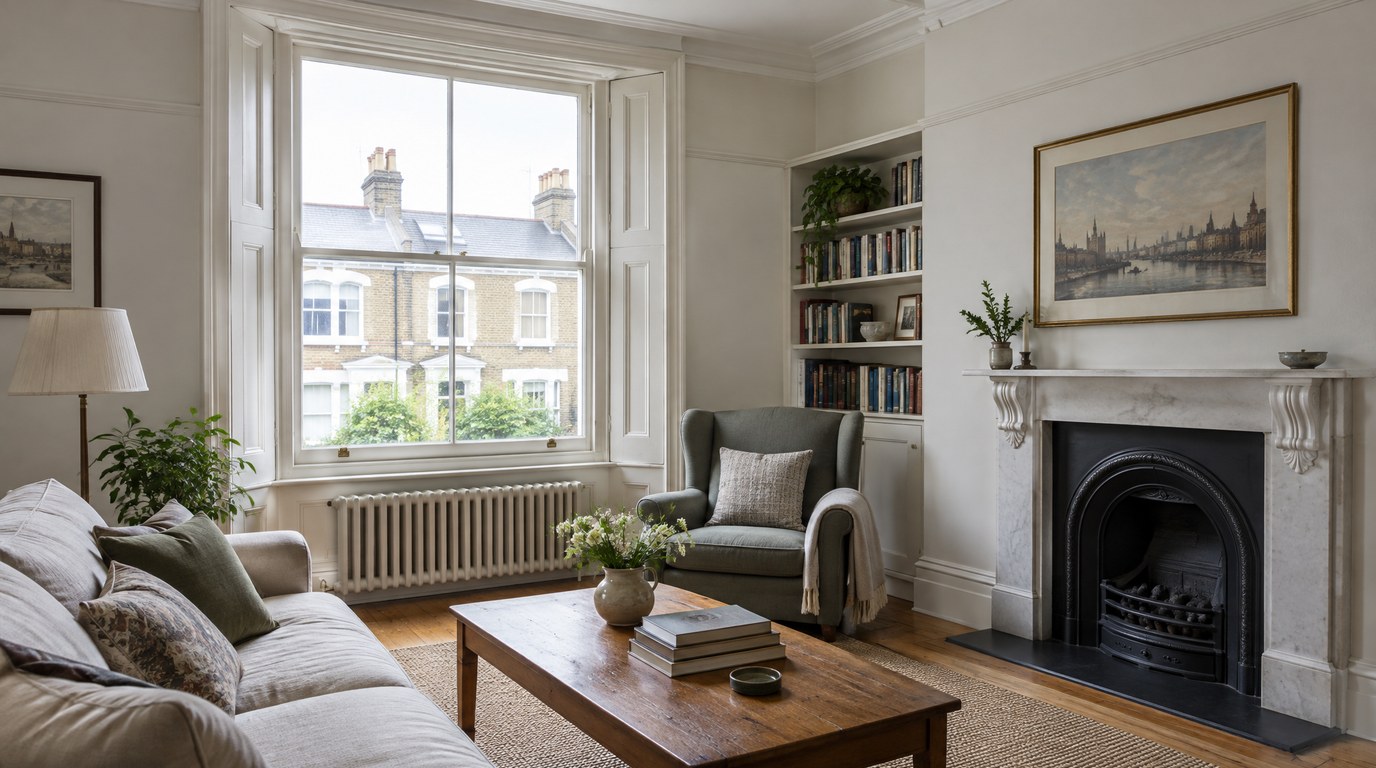

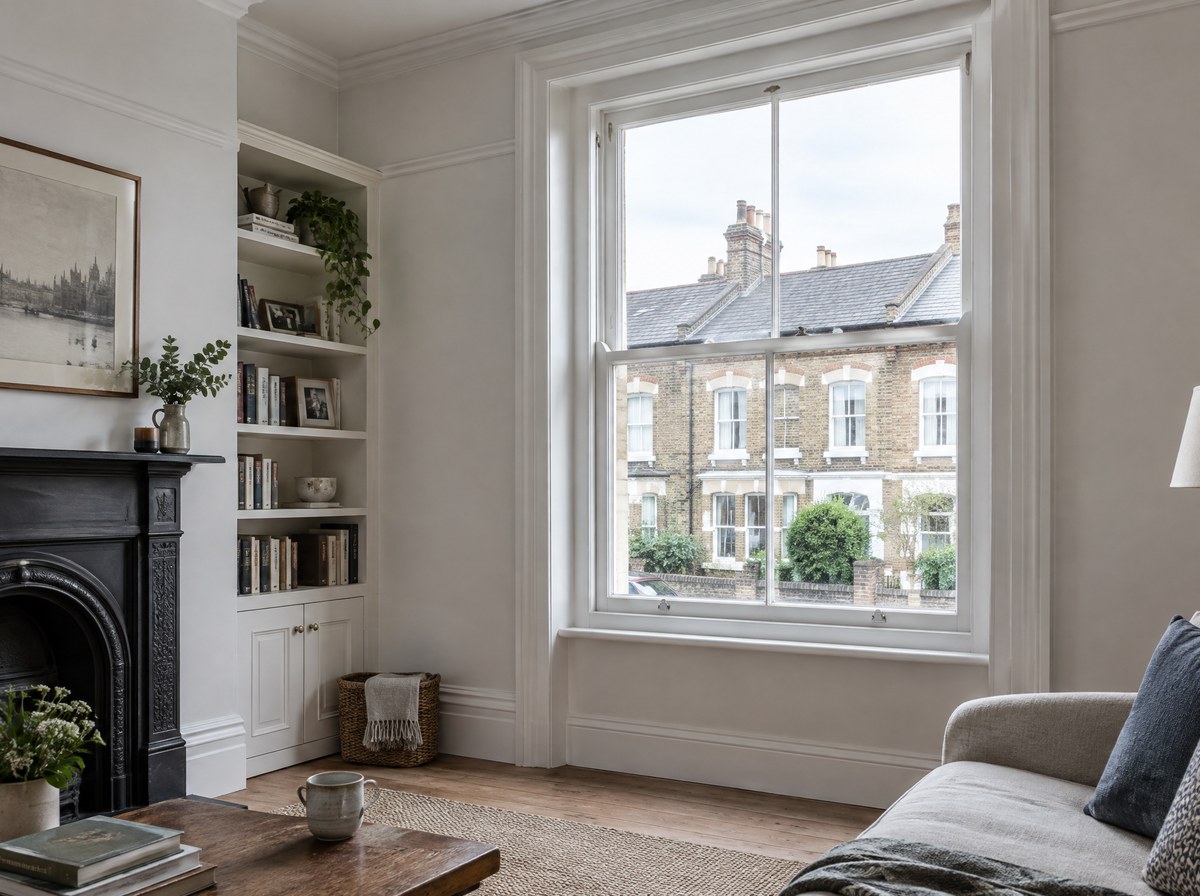

From inside the room looking out through the sash, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The sash at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Sash
Description
Two ways to run a sash. Cast-iron weights on cords over brass pulleys keep the original balance and the original box depth of 145 mm. Spiral spring balances take 95 mm and suit a slimmer reveal. Both sashes tilt in for cleaning and are balanced to within 0.5 kg, so one finger holds them anywhere in the travel. The 48 mm sightline puts more glass in a tall opening than a casement does, which is why Uw reaches 1.2 W/m2K on a 24 mm unit. Twin brush pile closes the gap that made the old ones rattle; 6.8 mm acoustic laminate takes a road-facing front room to 39 dB. Horns, Georgian bars and marginal lights are matched from a rubbing of the original.
Specify it when
Georgian, Victorian and Edwardian front elevations where the vertical sliding opening and the original meeting-rail line have to be kept, and the existing sashes rattle, stick or have rotted at the cill.
Specification
- Frame sightline
- 48 mm
- Meeting rail
- 42 mm
- Box depth
- 145 mm on weights, 95 mm on spring balance
- Maximum sash size
- 1400 x 2400 mm overall, 65 kg per sash
- Balance
- Cast-iron weights on waxed cord, or spiral spring
- Opening
- Full travel, both sashes tilt in for cleaning
- Sealed unit
- 14 to 24 mm
- Uw
- From 1.2 W/m2K on a 24 mm unit, 1.6 with slim 14 mm units
- Draught seal
- Twin brush pile, 5 mm
- Guarantee
- 10 years, cords rated to 30 years
- Lead time
- 8 weeks from survey to install
Configurations
- Box sash on weights
- Spring balance sash
- Tilt-in for cleaning
- Sash horns, lamb's tongue or splayed
- Georgian bars, 6 over 6 or 2 over 2
- Marginal lights
- Arched head
- Triple sash bay set
Glass
- Slim 14 mm double, Ug 1.4
- 24 mm double, Ug 1.1
- Restoration glass, hand drawn
- 6.8 mm acoustic laminate
- Obscure levels 3 to 5
- Toughened below 800 mm from floor
Finishes
- Painted, 213 RAL
- Different colour inside and out
- Stained engineered timber
- Slim uPVC foil where the budget leads
- Grained finish on request
Hardware
- Brass fitch or Brighton fastener
- Sash lifts and pull handles
- Cast pulleys, brass or nylon
- Waxed cord or chain
- Sash restrictors
- Polished, antique or black
Performance
- Thermal
- Uw from 1.2 W/m2K on a full-height sash, 1.6 with slim 14 mm units
- Acoustic
- 39 dB with 6.8 mm acoustic laminate; brush seals hold it below a casement
- Security
- PAS 24 with dual fasteners and restrictors, Secured by Design
- Weather
- BS 6375, twin brush pile and drained cill
- Operation
- Sashes balanced to within 0.5 kg, adjusted free in the first year
