Low exterior three-quarter on an exposed coastal terrace, one 3 m lifting leaf half open with the handle turned down, flat sea light behind it.
4:3
Lift-and-slide doors
A heavy slider that seals shut under compression, for exposed walls, panes over 3 m tall, or where rain has beaten a standard slider.
- Maximum leaf
- 3300 x 3300 mm
- Leaf weight
- To 600 kg
- Lead time
- 8 wks
- 900 Pa water tightness for exposed walls
- Operating force under 100 N
- 6 locking points per leaf, PAS 24
The whole lift-and-slide doors square on and filling the frame, in the 2 panel, 1 lifting leaf configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 3300 x 3300 mm double, 3000 x 3000 mm triple.
3:4

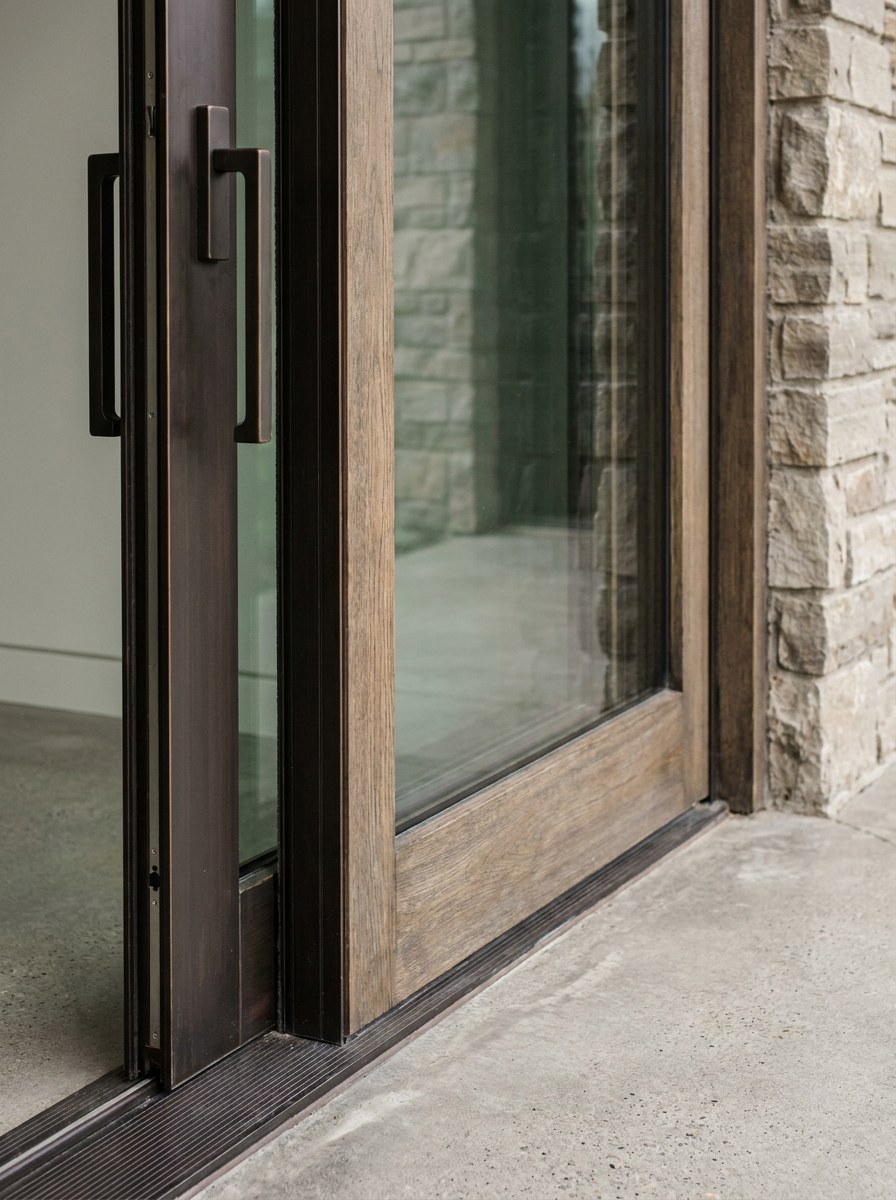

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 194 mm on 2 tracks sightline can be measured off the frame, with the background thrown out of focus.
1:1
The hand-level detail: lift-and-slide gear, 180 degree handle photographed in use on the 213 ral colours finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

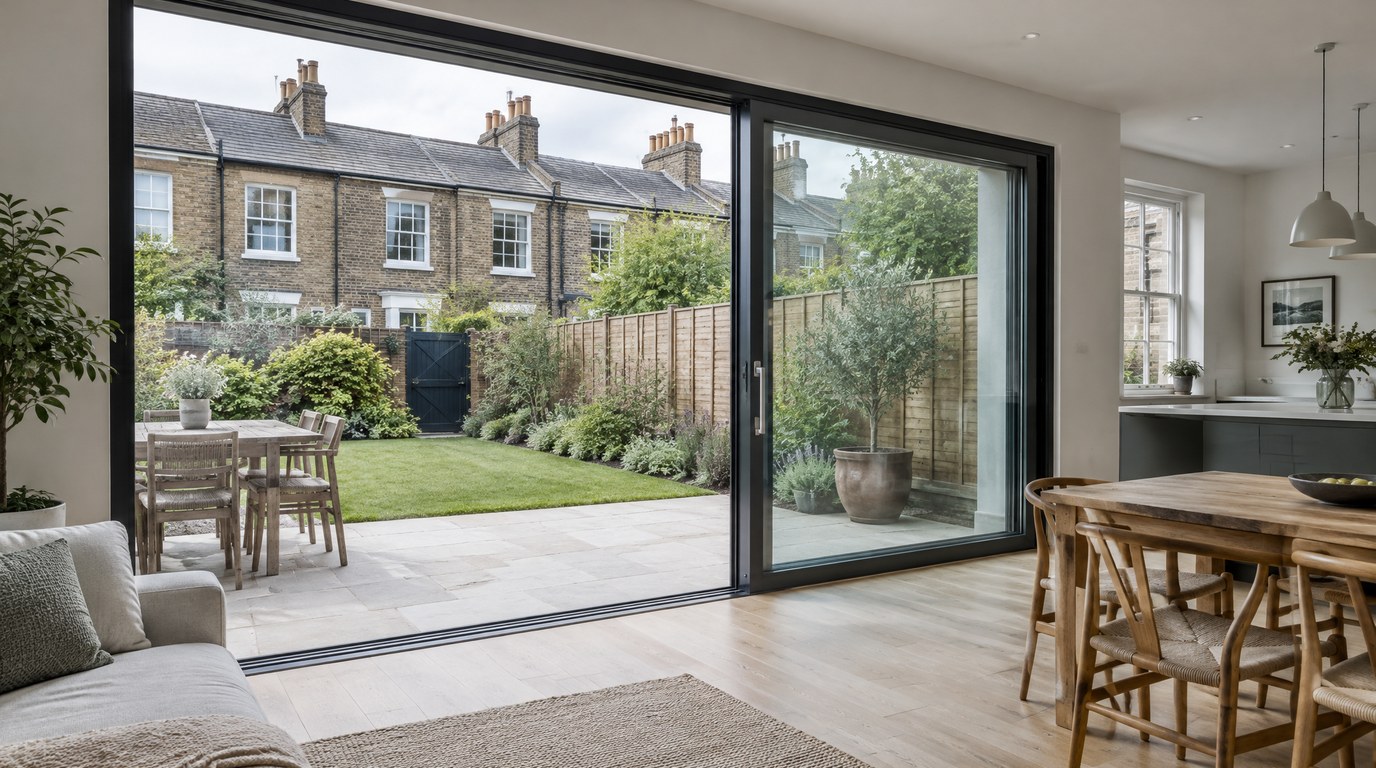

From inside the room looking out through the lift-and-slide doors, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The lift-and-slide doors at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Lift-and-slide doors
Description
Turn the handle 180 degrees and the leaf lifts 6 mm off its seals, then rolls. Let go and it drops back and compresses the gaskets all round. That is why it holds 900 Pa of water against a running slider's 600 Pa, and why it carries more weight: leaves to 3300 x 3300 mm and 600 kg in double glazing, or 3000 x 3000 mm in triple, where the weight limit bites first. Operating force stays under 100 N at full size. Choose it for exposed walls, very large panes, or a door left shut for months at a time.
Specify it when
Exposed or coastal walls, panes over 3 m tall, or any opening where wind-driven rain has already beaten a standard running slider.
Specification
- Interlock
- 45 mm
- Outer frame depth
- 194 mm on 2 tracks
- Maximum leaf
- 3300 x 3300 mm double, 3000 x 3000 mm triple
- Maximum leaf weight
- 600 kg
- Lift travel
- 6 mm
- Operating force
- under 100 N
- Uw
- from 1.2 W/m2K
- Glazing
- 32 to 52 mm sealed units
- Threshold
- 25 mm, flush option
- Security
- PAS 24, Secured by Design
- Lead time
- 8 weeks from survey to install
Configurations
- 2 panel, 1 lifting leaf
- 3 panel, 1 or 2 lifting
- 4 panel on 2 tracks
- Corner opening, no post
- Pocket into the cavity
- Fixed light plus lifting leaf
Glass
- 32 mm double
- 52 mm triple
- Laminated inner pane for guarding
- Solar control on south elevations
- Acoustic laminate to 44 dB
Finishes
- 213 RAL colours
- Anodised silver, bronze or black
- Dual colour
- Textured matt
- Coastal grade coating
Hardware
- Lift-and-slide gear, 180 degree handle
- Flush or offset handle
- Stainless rollers rated 600 kg
- Multipoint mushroom locking
- Soft-close damper
- Motorised drive option
Performance
- Thermal
- Uw from 1.2 W/m2K
- Acoustic
- 44 dB with triple glazing
- Security
- PAS 24, Secured by Design, 6 locking points per leaf
- Weather
- BS 6375, 900 Pa water tightness
- Operation
- tested to 25,000 cycles
