Entrance doors
An aluminium front door built for security and warmth, for a single leaf up to 1200 mm wide, with or without side panels.
- Maximum leaf
- 1200 x 2400 mm
- U-value
- From 1.2 W/m²K
- Lead time
- 7–8 wks
- PAS 24 tested, Secured by Design
- 5-point locking, 3-star cylinder
- Thermally broken, on a 90 mm frame
The whole entrance doors square on and filling the frame, in the single leaf configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 70 mm.
3:4
Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 90 mm sightline can be measured off the frame, with the background thrown out of focus.
1:1

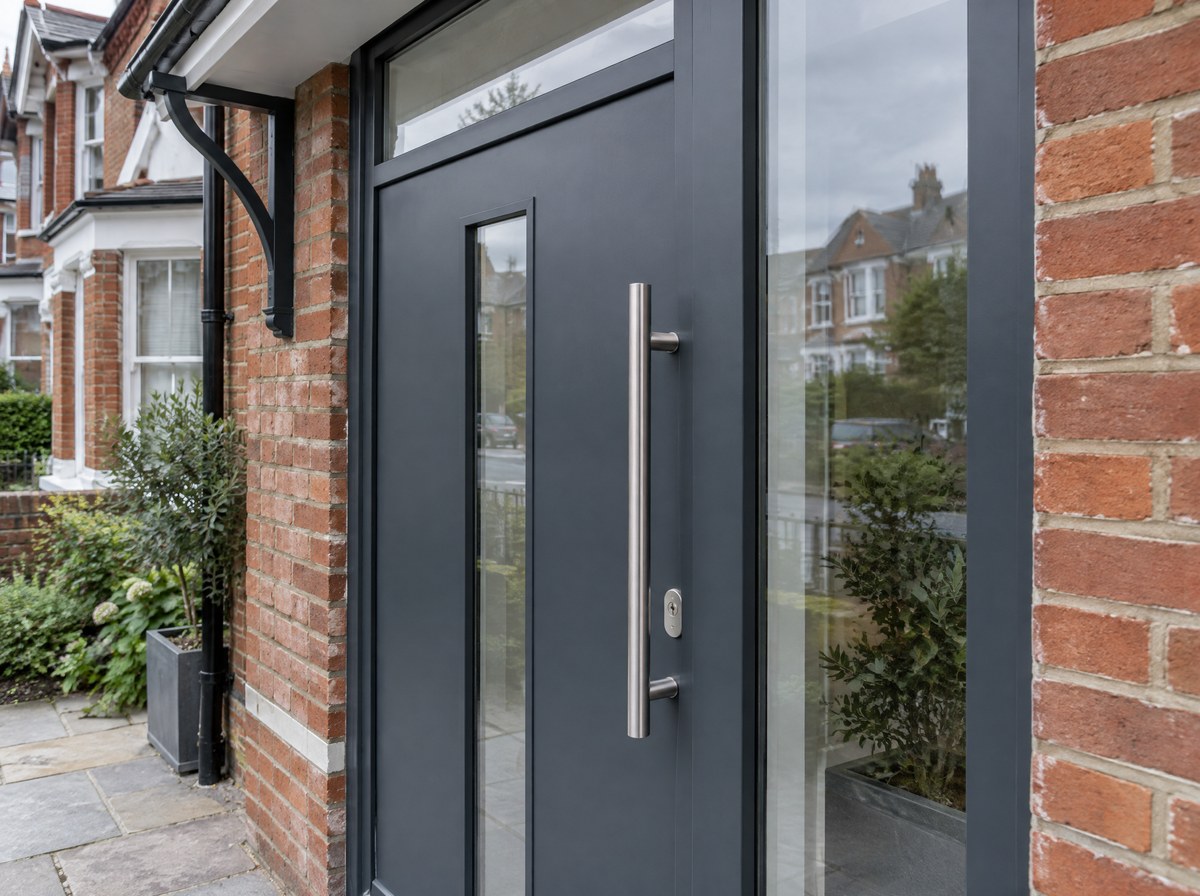

The hand-level detail: 5-point locking photographed in use on the 213 ral colours finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3
From inside the room looking out through the entrance doors, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The entrance doors at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Entrance doors
Description
Thermally broken aluminium on a 90 mm outer frame, glazed with a 24 mm laminated unit or filled with a solid insulated panel. Every set is tested to PAS 24 and made to Secured by Design specification, with 5-point locking and a TS 007 3 star cylinder as standard. Leaves run to 1200 x 2400 mm and 90 kg, so a tall Victorian opening takes a full-height leaf instead of a fanlight to make up the height. Side panels and a top light sit in the same outer frame, mitred and coated as one unit.
Specify it when
The front of a house, where security and thermal performance matter more than glass area, and the opening is a single leaf up to 1200 mm wide, with or without side panels.
Specification
- Outer frame depth
- 90 mm
- Leaf thickness
- 70 mm
- Maximum leaf
- 1200 x 2400 mm
- Maximum leaf weight
- 90 kg
- Glazing
- 24 mm laminated double or 44 mm triple
- Uw
- from 1.2 W/m2K
- Locking
- 5-point, TS 007 3 star cylinder
- Threshold
- 20 mm rebated aluminium
- Guarantee
- 10 years
- Lead time
- 7-8 weeks from survey to install
Configurations
- Single leaf
- Single with one side panel
- Single with two side panels
- Side panel plus top light
- Double leaf, equal 1:1
- Unequal double leaf 2:1
Glass
- 24 mm laminated double
- 44 mm triple
- Obscure, levels 1-5
- Solid insulated infill panel
- Acoustic laminate to 44 dB
Finishes
- 213 RAL colours
- Anodised silver, bronze or black
- Dual colour inside and out
- Matt, satin or textured
- Timber-effect foil
Hardware
- 5-point locking
- TS 007 3 star cylinder
- Lever or 1800 mm pull handle
- Concealed or butt hinges
- Letterplate to BS EN 13724
- Keypad or fingerprint entry
Performance
- Thermal
- Uw from 1.2 W/m2K with a 24 mm laminated unit
- Acoustic
- 34 dB standard, 44 dB with triple glazing
- Security
- PAS 24, Secured by Design, 3 star cylinder
- Weather
- BS 6375, 600 Pa water tightness
