Hardware
Locks, hinges and handles morticed into the steel before welding, so they are confirmed five weeks before install.
- Locking
- 5-point
- Hinges
- 120 kg per leaf
- Cycle tested
- 200,000
- Tested to PAS 24, Secured by Design
- TS007 3-star anti-snap cylinder
- A4 stainless fixings for coastal sites
The whole hardware square on and filling the frame, in the single leaf, latch only configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective.
3:4
Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible, with the background thrown out of focus.
1:1
The hand-level detail: monkey-tail handle photographed in use on the aged brass finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3
From inside the room looking out through the hardware, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9

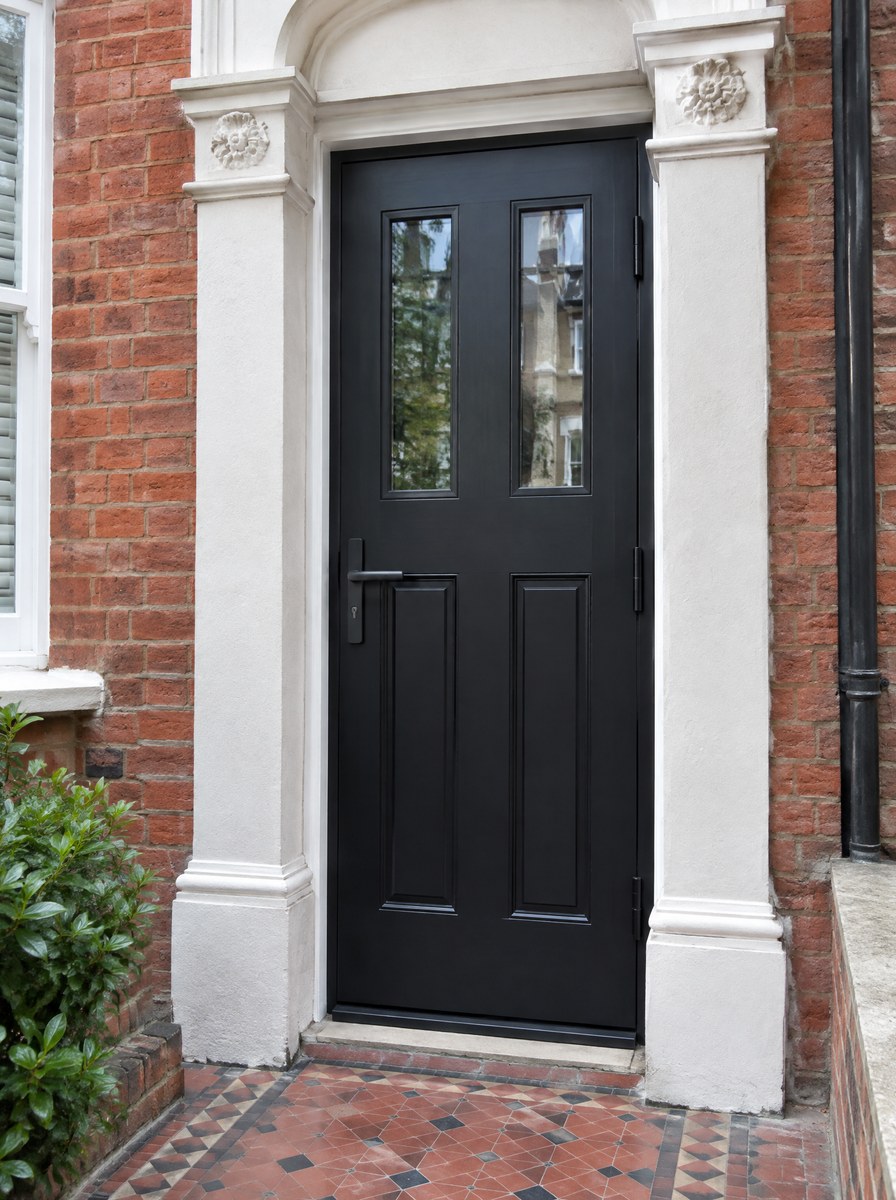

The hardware at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Hardware
Description
Hardware on steel is fitted into the section, not onto it, so it is drawn before the frame is welded. Internal leaves take butt or pivot hinges and a roller catch or a 55 mm backset mortice latch. External doors take a 5-point espagnolette, a TS007 3-star cylinder and hinges rated to 120 kg a leaf, tested to 200,000 cycles. Handles come as monkey-tail, lever on rose, T-bar or flush pull, in aged brass, antique bronze, blackened steel, satin nickel or polished chrome.
Specify it when
Confirm this five weeks before install, and earlier if you want a specific handle, because the lock case and hinge positions are cut into the frame before it reaches the coating line.
Specification
- Hinge load rating
- 120 kg per leaf
- Hinge type
- 100 mm butt, or centre pivot
- External locking
- 5-point espagnolette, 2 hooks, 2 rollers, 1 deadbolt
- Cylinder
- TS007 3-star, anti-snap
- Internal lock
- 55 mm backset mortice latch
- Handle centre height
- 1050 mm, adjustable plus or minus 100 mm
- Cycle testing
- 200,000 open and close cycles
- Floor spring
- EN 3, adjustable closing speed
- Threshold height, external
- 15 mm
- Fixings, coastal
- A4 marine-grade stainless
- Lead time
- Within the 6 to 8 week build, confirmed 5 weeks before install and before welding
Configurations
- Single leaf, latch only
- Single leaf, locking
- Double leaf, active and passive with flush bolts

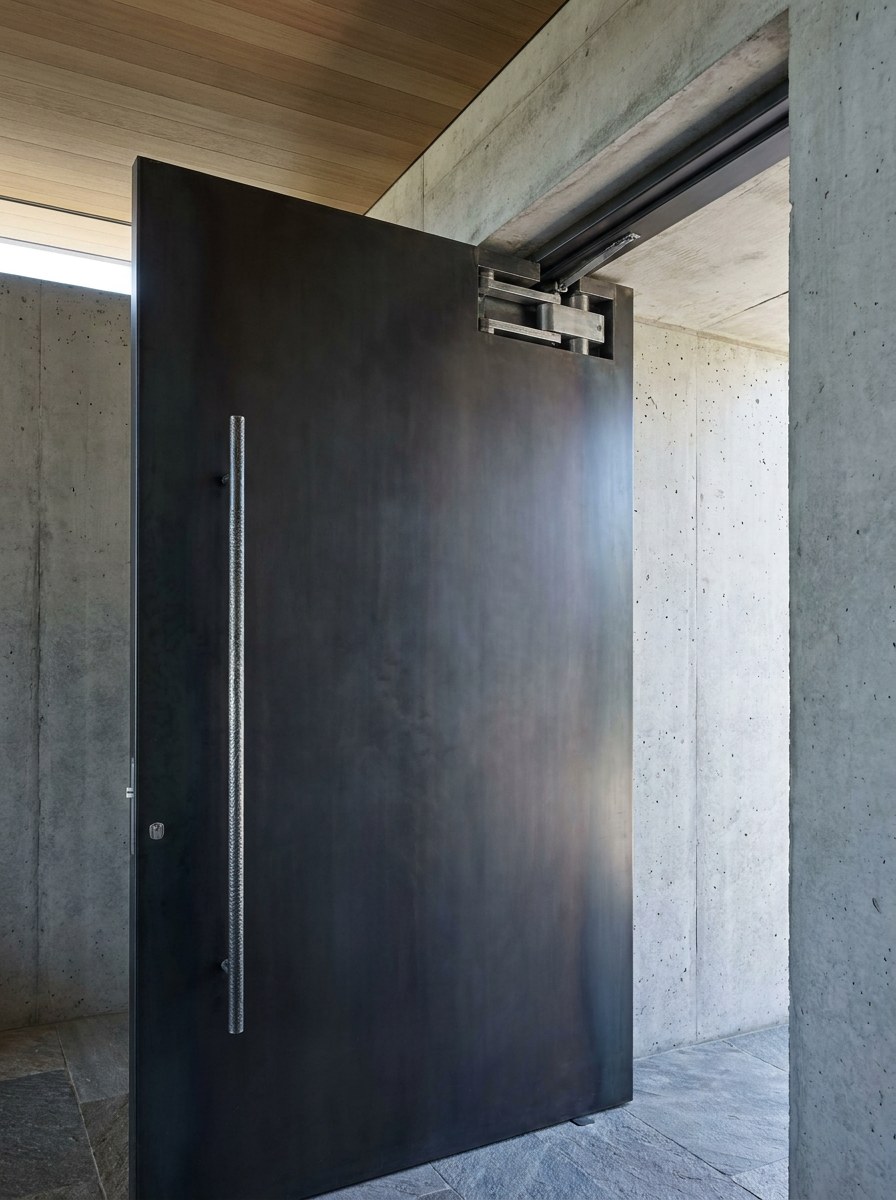

- Pivot leaf with floor spring
- Sliding leaf with soft-close
Finishes
- Aged brass
- Antique bronze
- Blackened steel
- Satin nickel
- Polished chrome
- Matched to frame RAL
Hardware
- Monkey-tail handle

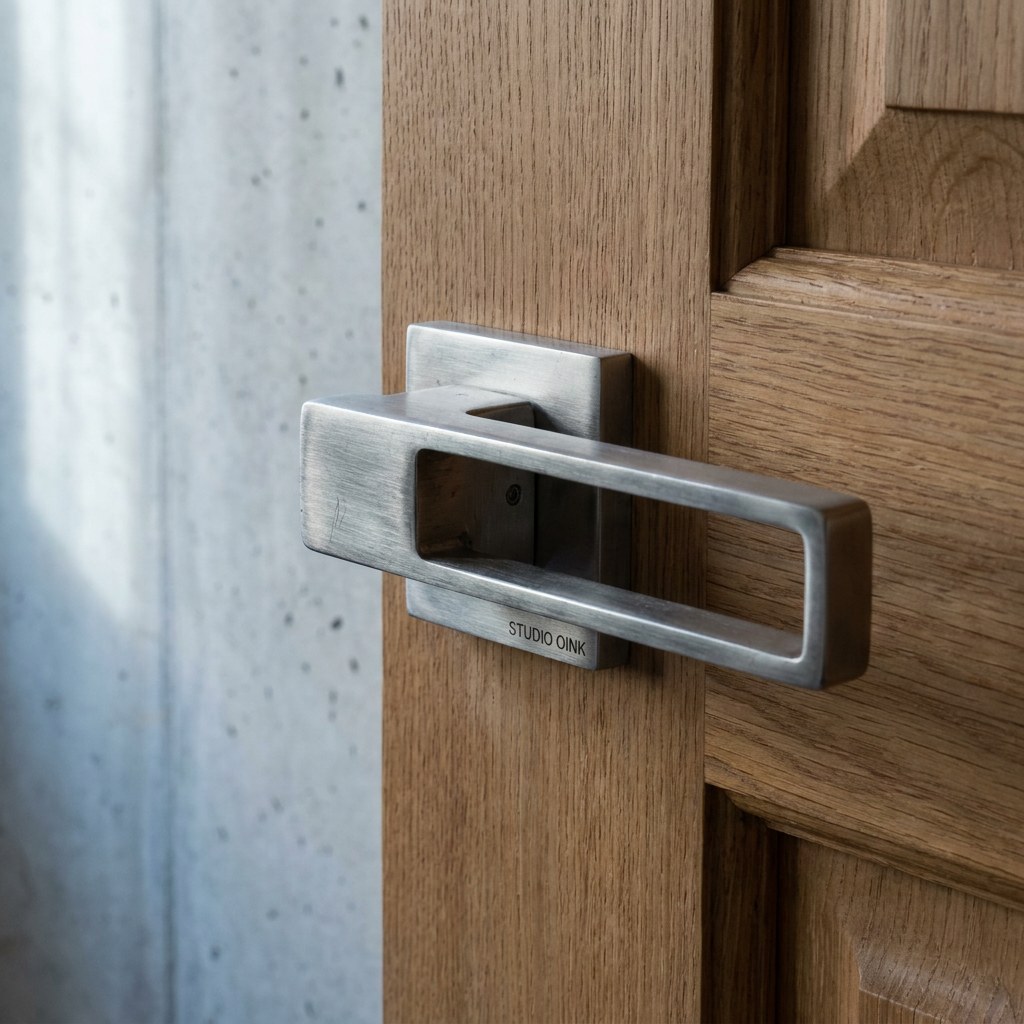

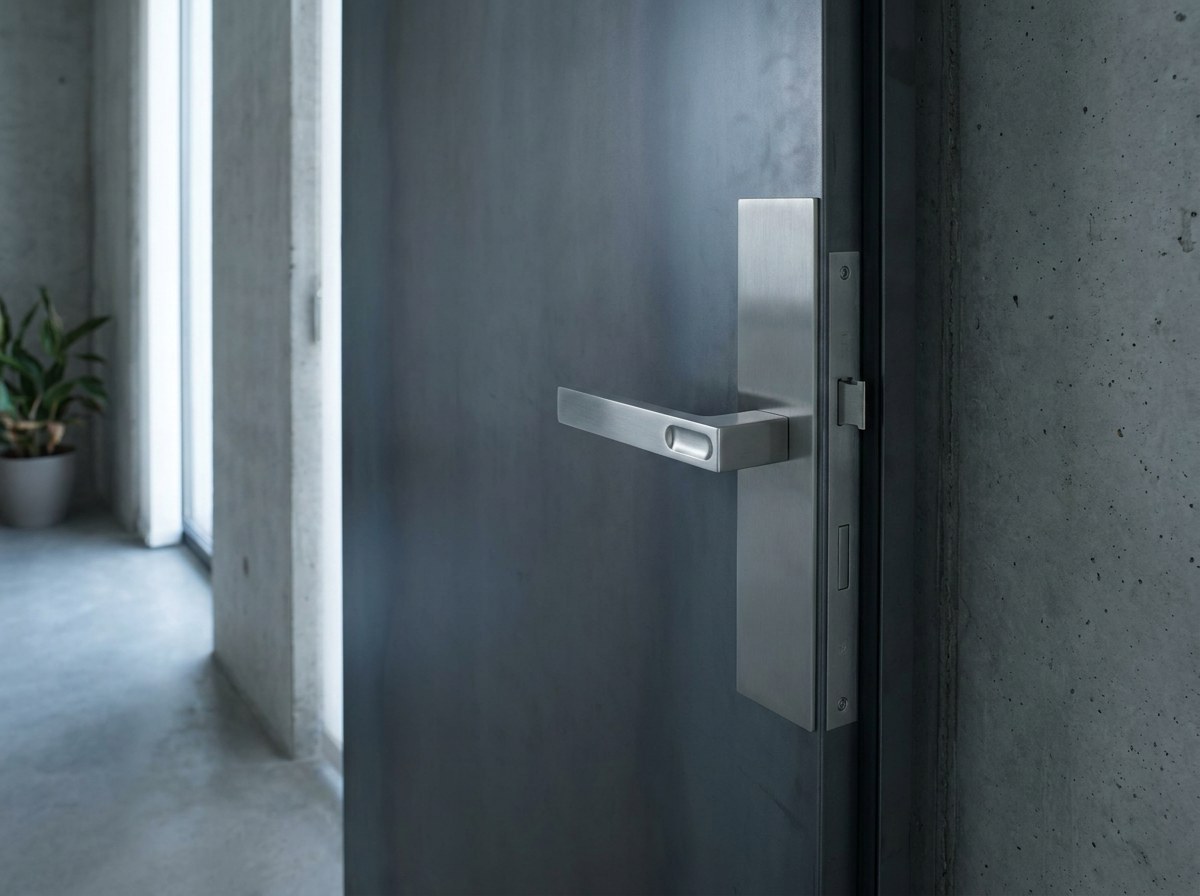

- Lever on rose
- T-bar pull, 400 to 1800 mm
- Flush pull
- Mortice knob
- Escutcheon and key
- Thumbturn
- Roller catch
- Magnetic catch
- Concealed door closer
Performance
- Security
- 3-star cylinder and 5-point locking, tested to PAS 24 and accepted for Secured by Design
- Durability
- 200,000 cycles tested; hinges rated to 120 kg per leaf
- Weather
- Espagnolette compresses the seal at 5 points; BS 6375-1 water tightness at 600 Pa
- Thermal
- Locking points compress the gasket evenly, holding the quoted Uw across the leaf
- Corrosion
- A4 marine-grade stainless fixings within 5 km of salt water
