Glass
The glass for internal and external steel, from laminate between rooms to acoustic triple units.
- Internal
- 6.8 mm laminate
- Sealed units
- 24 to 44 mm
- Acoustic
- To 44 dB
- Reeded, fluted and low-iron glass
- Astragal bars at 12 or 20 mm
- 10-year guarantee against unit failure

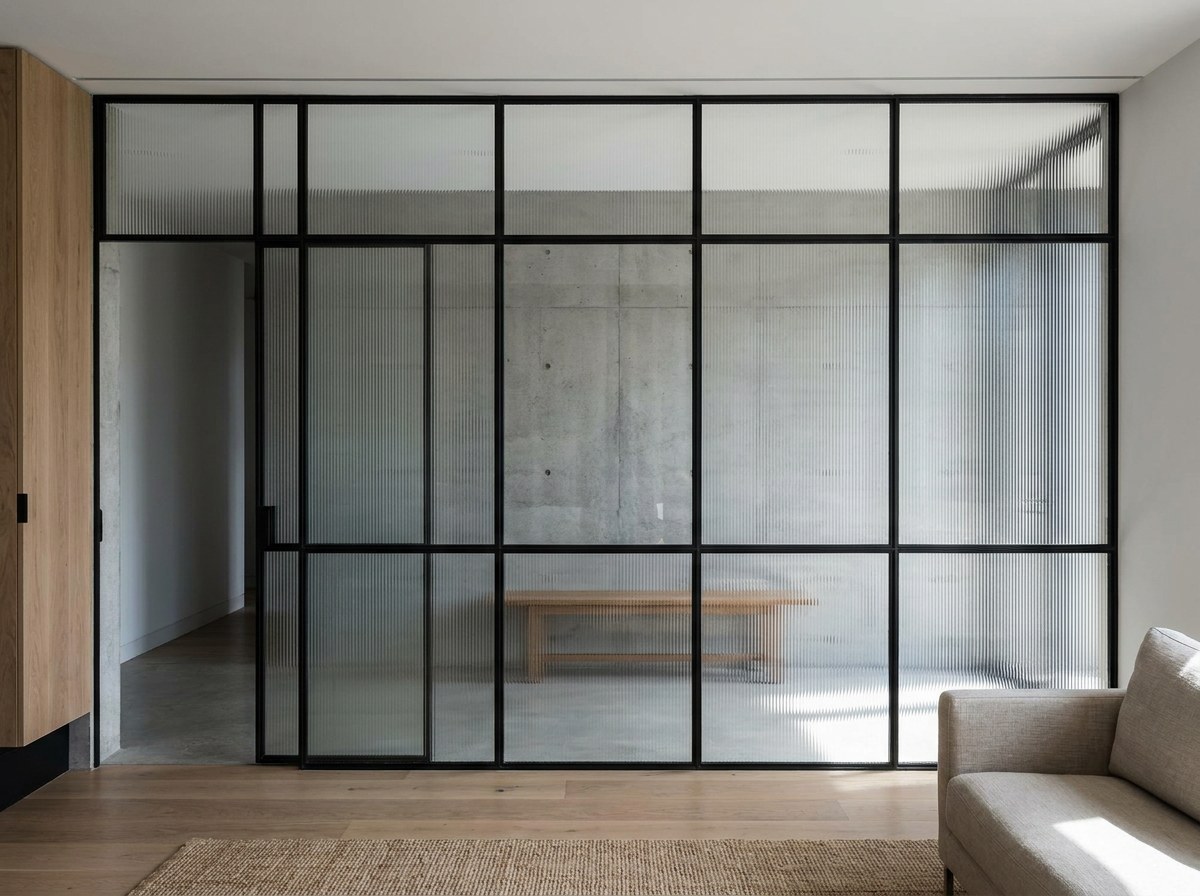

The whole glass square on and filling the frame, in the full pane configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 1000 x 2400 mm.
3:4
Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 12 mm sightline can be measured off the frame, with the background thrown out of focus.
1:1

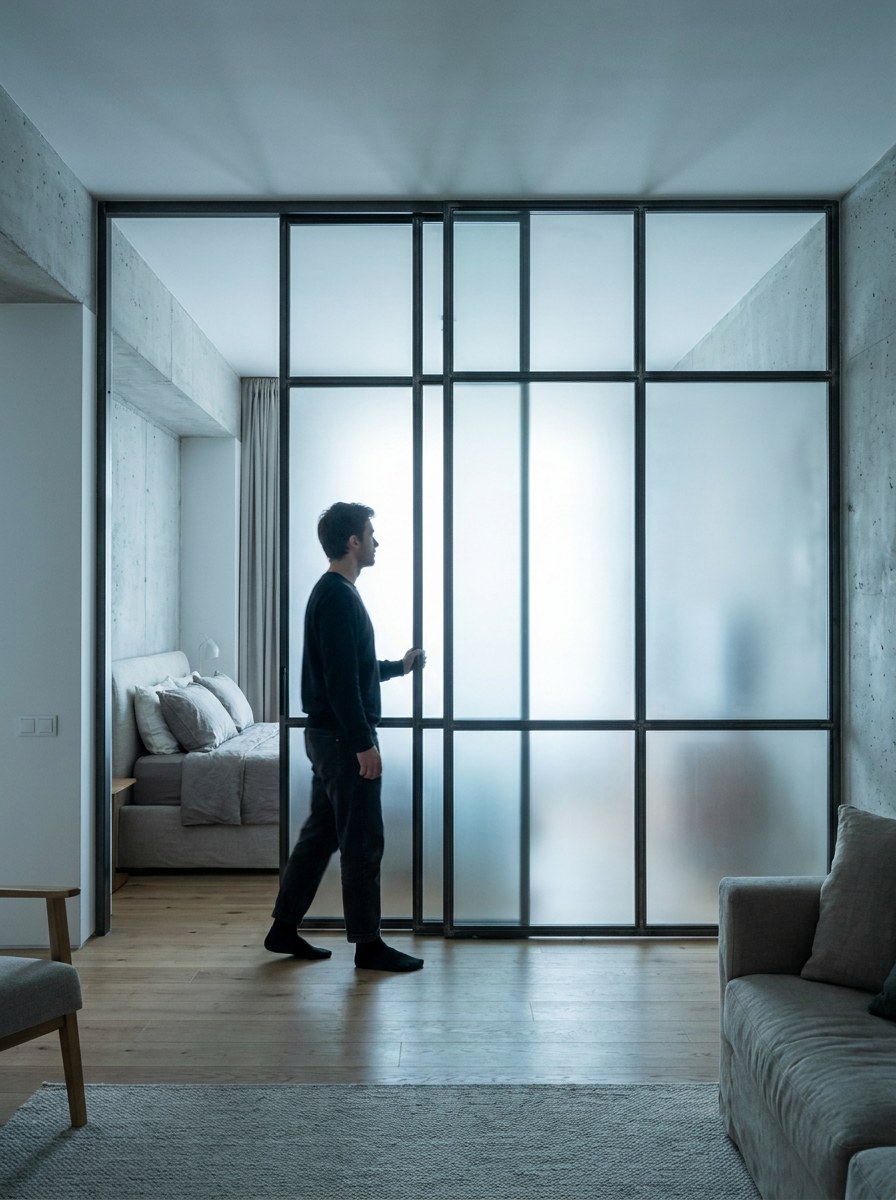

The hand-level detail: steel glazing beads photographed in use on the black putty line finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

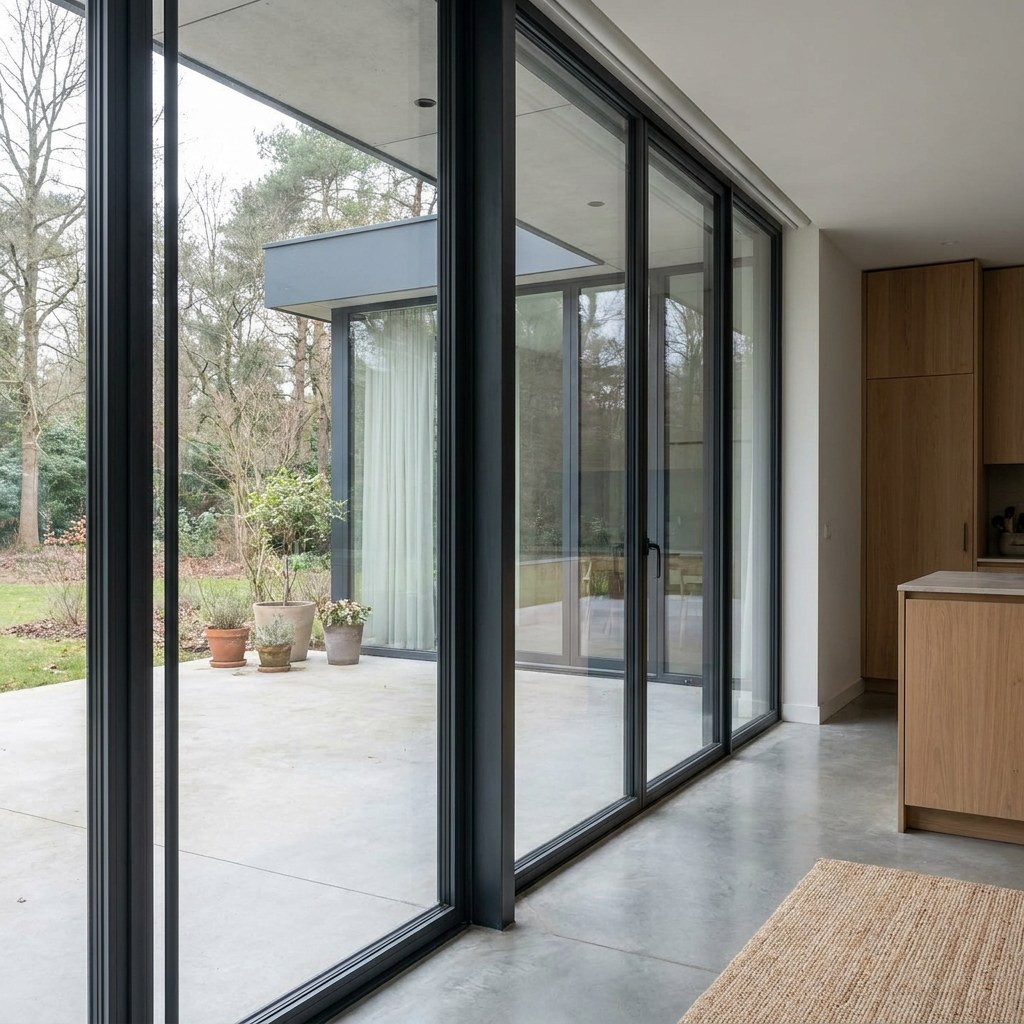

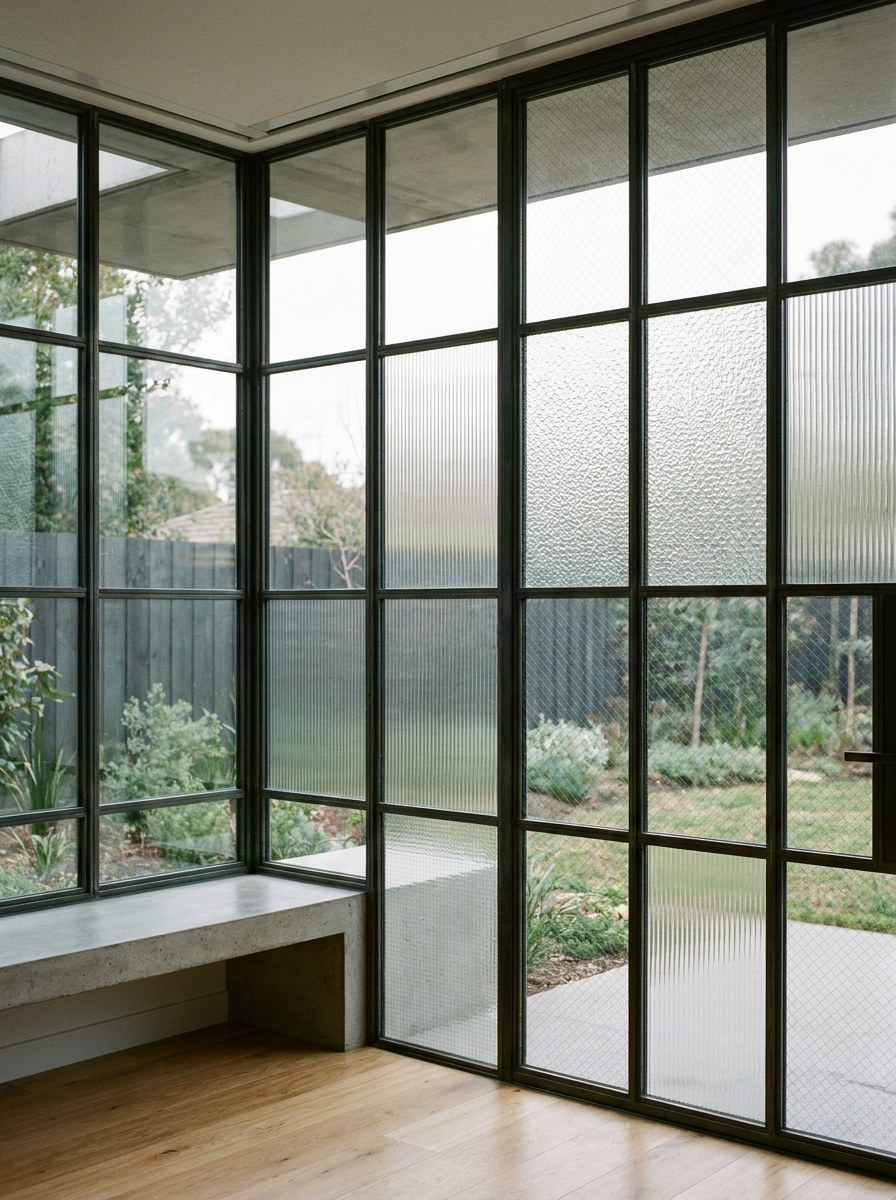

From inside the room looking out through the glass, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9

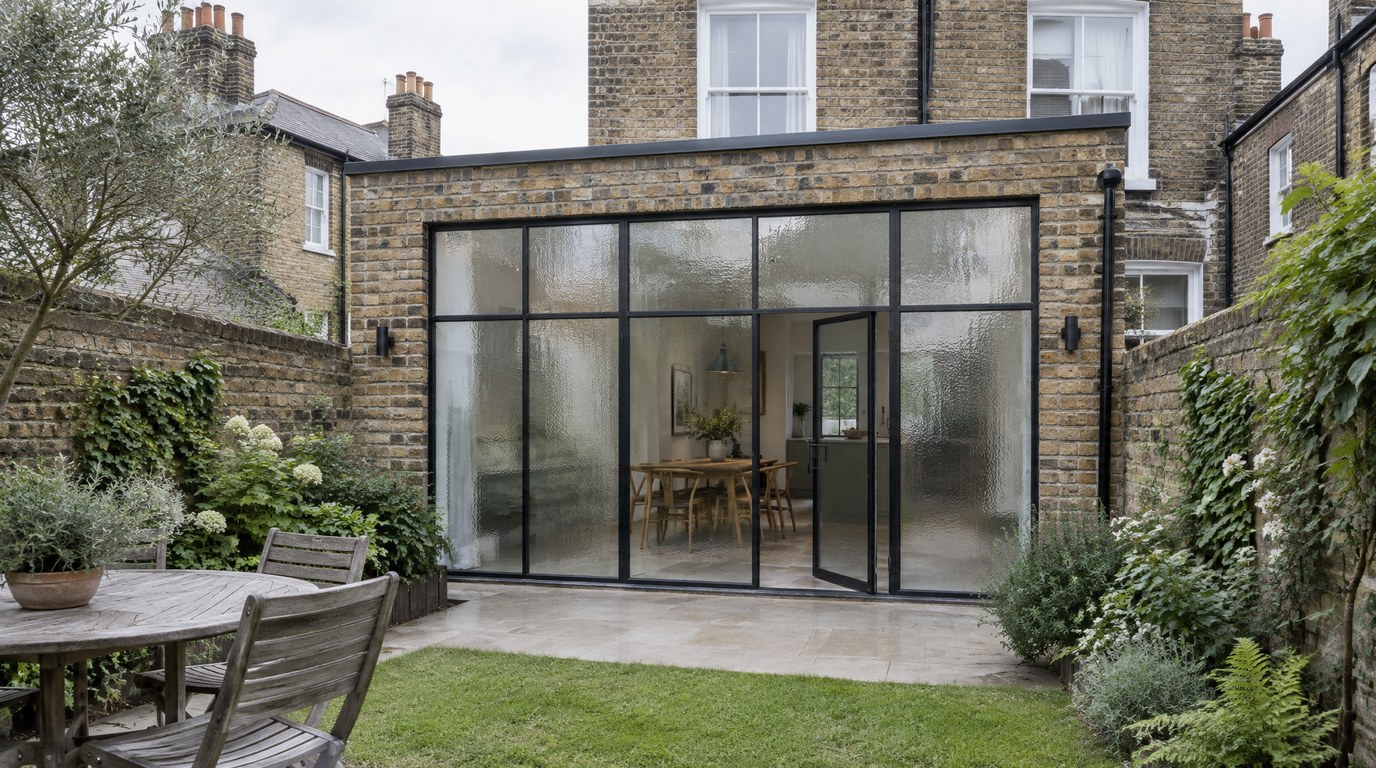

The glass at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Glass
Description
Steel holds glass in a narrow rebate, so the glass and the section are chosen together. Internal screens take 6.8 mm laminate into a 12 mm rebate, glazed to a putty line or a slim steel bead. External and thermally broken sections take sealed units from 24 mm double to 44 mm triple, reaching 44 dB with triple glazing. Panes run to 1000 x 2400 mm. Reeded at 8 mm pitch, fluted at 22 mm, satin and low-iron are stocked. Overhead panes follow BS 5516-2 and are laminated on the underside.
Specify it when
Choose the glass with the section, not after it, particularly where you want obscurity between rooms, or where a party wall, a flight path or a main road makes acoustics the deciding number.
Specification
- Internal glazing
- 6.8 mm laminate
- Internal rebate depth
- 12 mm
- Sealed unit range
- 24 mm double to 44 mm triple
- Maximum single pane
- 1000 x 2400 mm
- Sealed unit U-value, glass only
- 1.0 W/m2K triple, 1.2 W/m2K double
- Reeded pitch
- 8 mm
- Fluted pitch
- 22 mm
- Solar control g-value range
- 0.29 to 0.62
- Astragal bar width
- 12 mm or 20 mm
- Overhead glazing
- Laminated underside to BS 5516-2
- Lead time
- Within the 6 to 8 week build; low-iron, reeded and acoustic specials add 2 weeks
Configurations
- Full pane
- Astragal bars, vertical
- Astragal bars, grid
- Half-glazed with steel panel
- Obscure below transom, clear above
Glass
- 6.8 mm clear laminate
- 6.8 mm satin laminate
- Reeded 8 mm
- Fluted 22 mm
- Low-iron
- Antique mirror
- 24 mm double, argon
- 44 mm triple, argon
- Acoustic laminate
- Solar control
Finishes
- Black putty line
- Matched RAL glazing bead
- Warm-edge spacer, black
- Warm-edge spacer, grey
Hardware
- Steel glazing beads
- Stainless setting blocks
- Structural silicone edge seal
Performance
- Thermal
- Glass only 1.0 W/m2K triple, 1.2 W/m2K double, argon filled. Whole-window Uw from 1.4 on thermally broken steel
- Acoustic
- 35 dB with 6.8 mm laminate, 38 dB with double glazing, 44 dB with triple glazing
- Security
- P1A laminate as standard, P5A on PAS 24 external door sets
- Weather
- Warm-edge spacer, 10-year guarantee against unit failure
- Solar
- g-value 0.29 to 0.62 depending on coating
