Configurations
How the steelwork opens and where it stays fixed: single, double, or between welded side screens.
- Leaves per set
- 1 to 4
- Bays per screen
- 2 to 5
- Maximum leaf
- 1100 x 2600 mm
- Welded assemblies to 3000 x 3000 mm
- Screens jointed on site to 5000 mm
- External sets from Uw 1.4 W/m²K
The whole configurations square on and filling the frame, in the single door configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 1100 x 2600 mm.
3:4

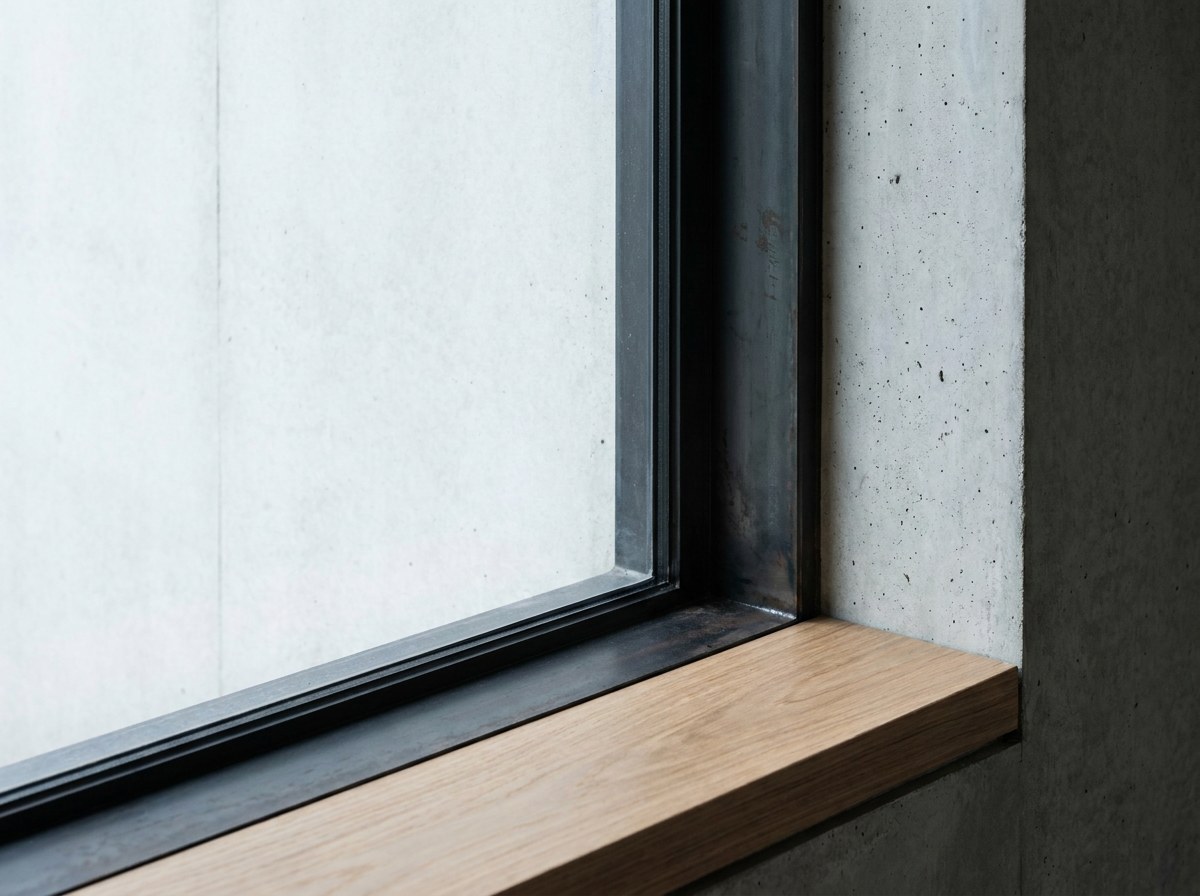

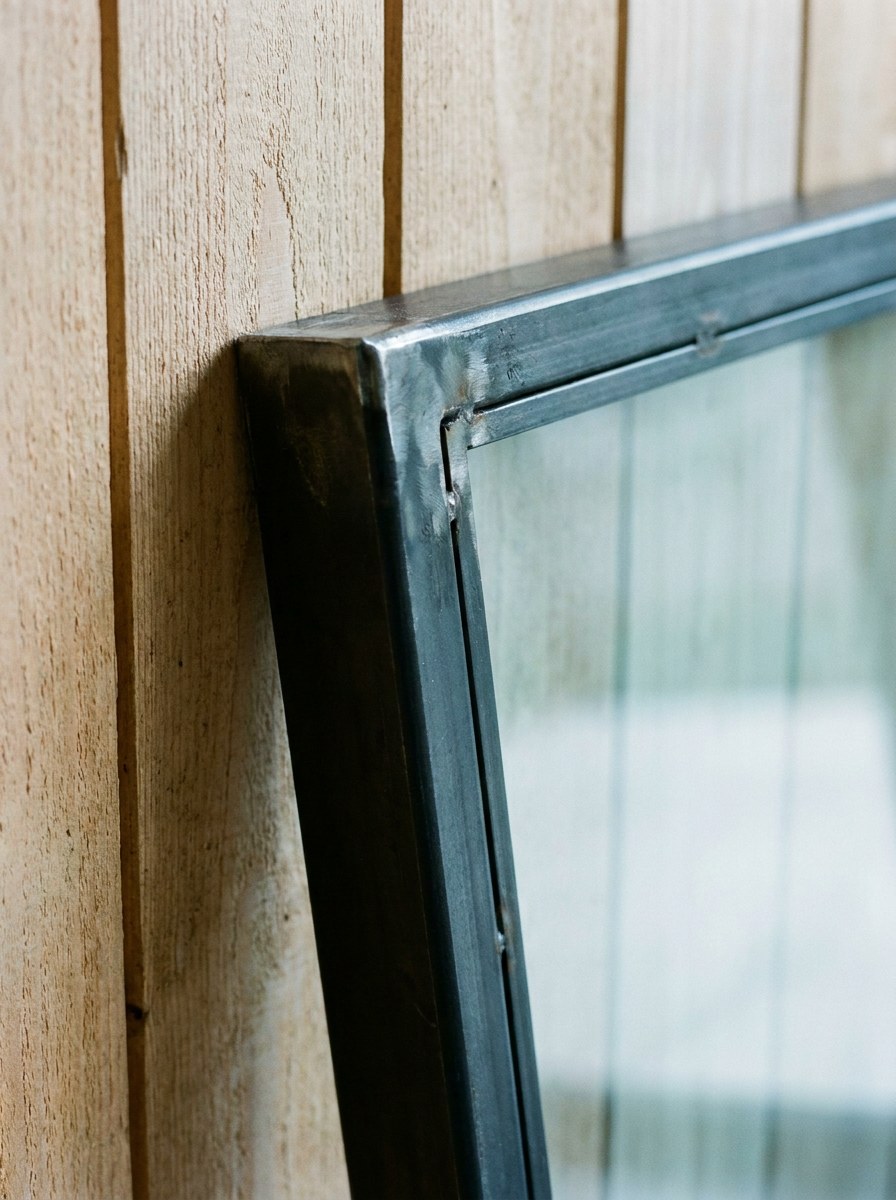

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 25 mm sightline can be measured off the frame, with the background thrown out of focus.
1:1
The hand-level detail: 100 mm butt hinges photographed in use on the ral matt finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

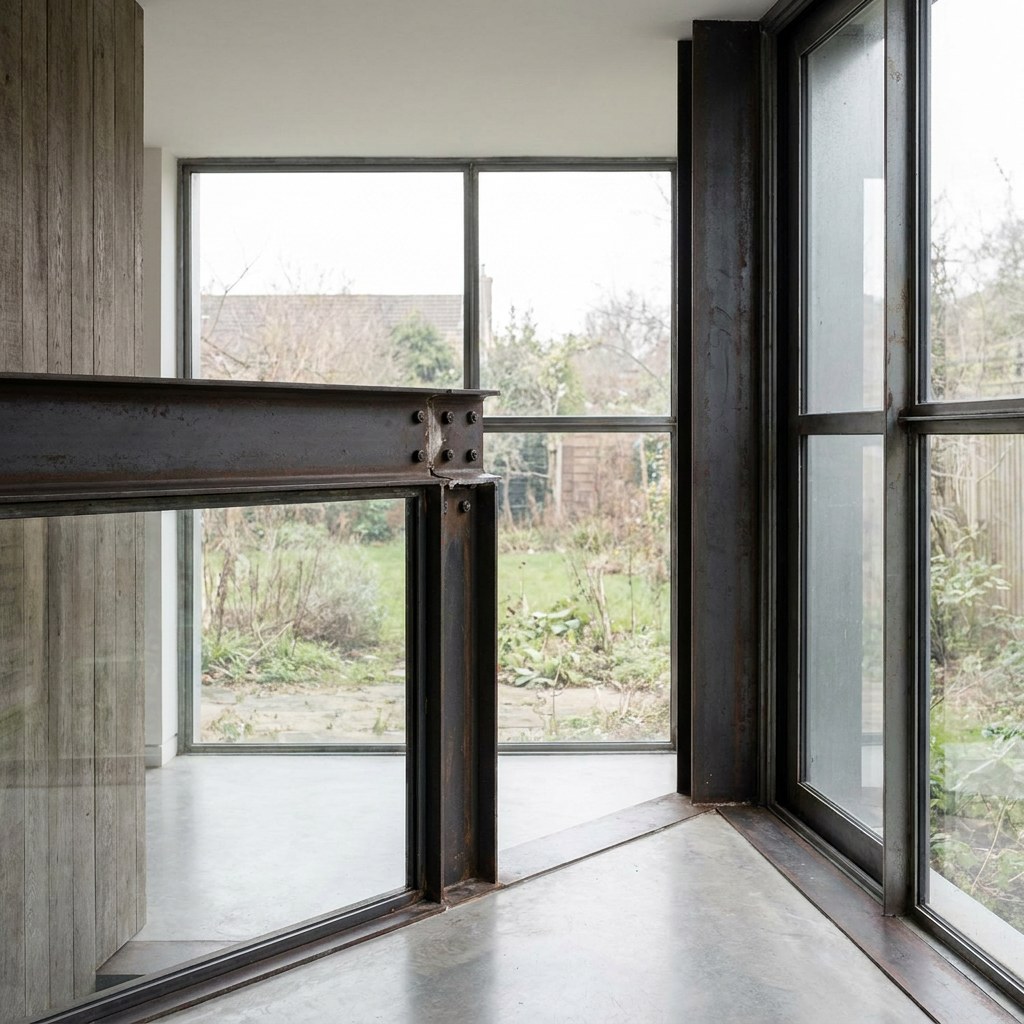

From inside the room looking out through the configurations, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9

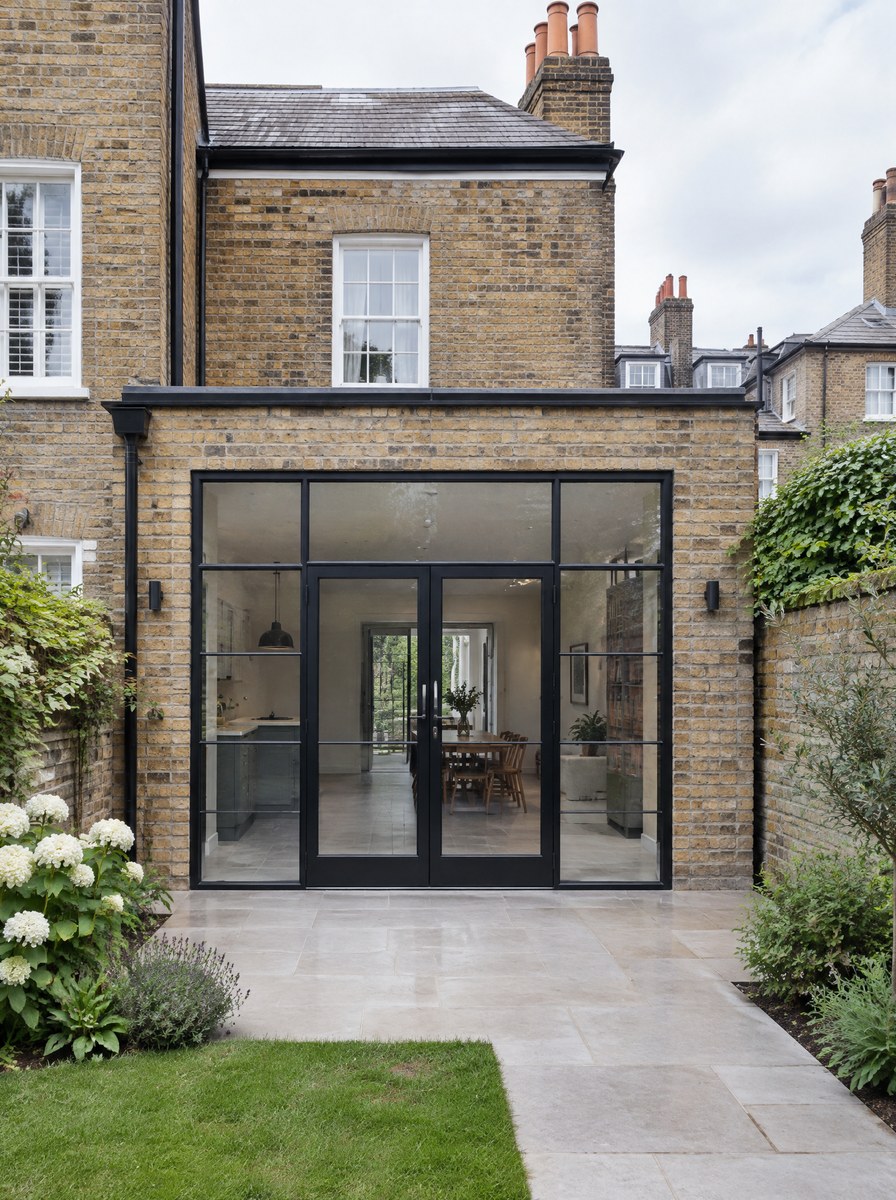

The configurations at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Configurations
Description
Configurations are settled first because they fix the steelwork. Sharp draws the frame as one welded assembly to 3000 x 3000 mm, or split on a line you agree for access. Internal leaves run to 1100 x 2600 mm on a 25 mm sightline, up to four to a set. Doors hang single, double, or in pairs flanked by side screens. Arched heads are rolled to a 600 mm minimum radius, not faked from straight segments. External openings use 70 mm thermally broken sections and heavier hinges.
Specify it when
Choose this first on any opening that is not a plain rectangle with one door in it: wide screens, arched heads, double doors with top lights, or a run that turns a corner.
Specification
- Maximum internal leaf
- 1100 x 2600 mm
- Face sightline, internal
- 25 mm
- Frame depth, internal
- 40 mm
- Frame depth, external thermally broken
- 70 mm
- Leaves per set
- 1 to 4
- Bays per fixed screen
- 2 to 5
- Maximum single welded assembly
- 3000 x 3000 mm
- Maximum screen width, jointed on site
- 5000 mm
- Minimum rolled arch radius
- 600 mm
- Structural opening tolerance
- plus or minus 10 mm
- Floor level tolerance across threshold
- 3 mm over 3 m
- Lead time
- 6 to 8 weeks from survey to install
Configurations
- Single door
- Double door
- Door plus one side screen
- Door plus two side screens
- Door with top light
- Fixed screen, 2 to 5 bays
- Corner screen, 90 degrees
- Rolled arched head
- Pivot door
- Sliding steel door on face-fixed track
