Finishes
Galvanising for anything external, then powder coat in any of 213 RAL colours, matt, satin or textured.
- Galvanising
- 45–85 microns
- Gloss levels
- 10, 30, 70%
- Recoat
- 25 years inland
- Dual colour inside and out
- Coating guaranteed for 10 years
- Touch-up aerosol with every order
The whole finishes square on and filling the frame, in the single colour throughout configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective.
3:4
Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible, with the background thrown out of focus.
1:1
The hand-level detail: aged brass photographed in use on the ral 9005 matt black finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3
From inside the room looking out through the finishes, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The finishes at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Finishes
Description

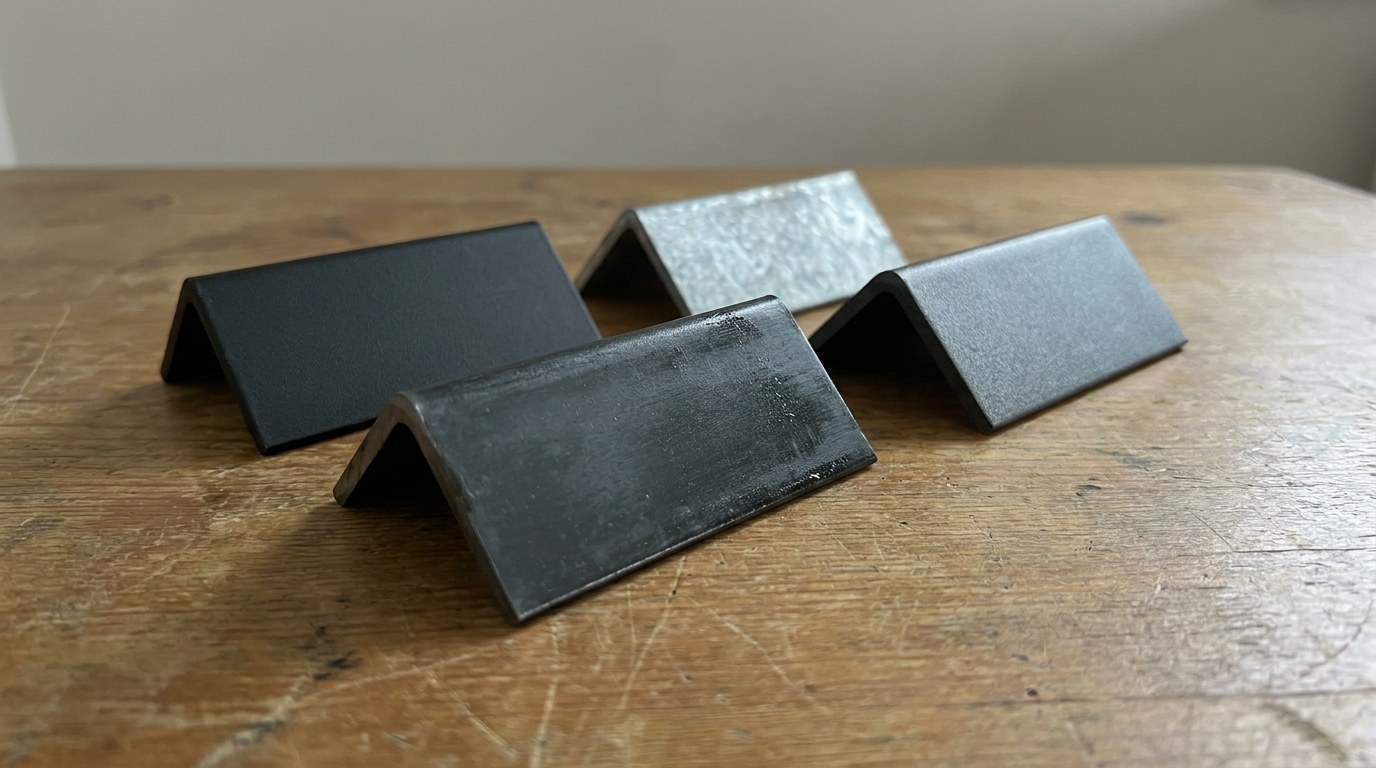

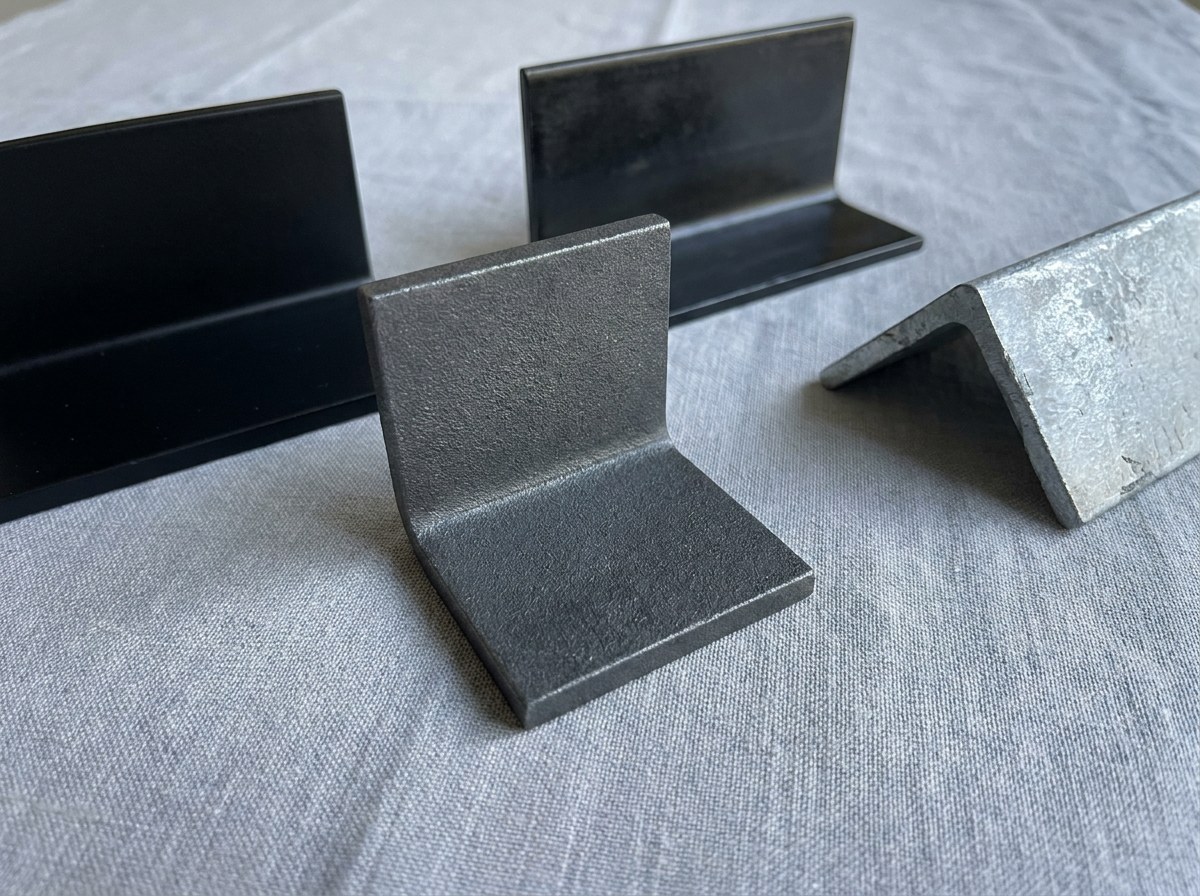

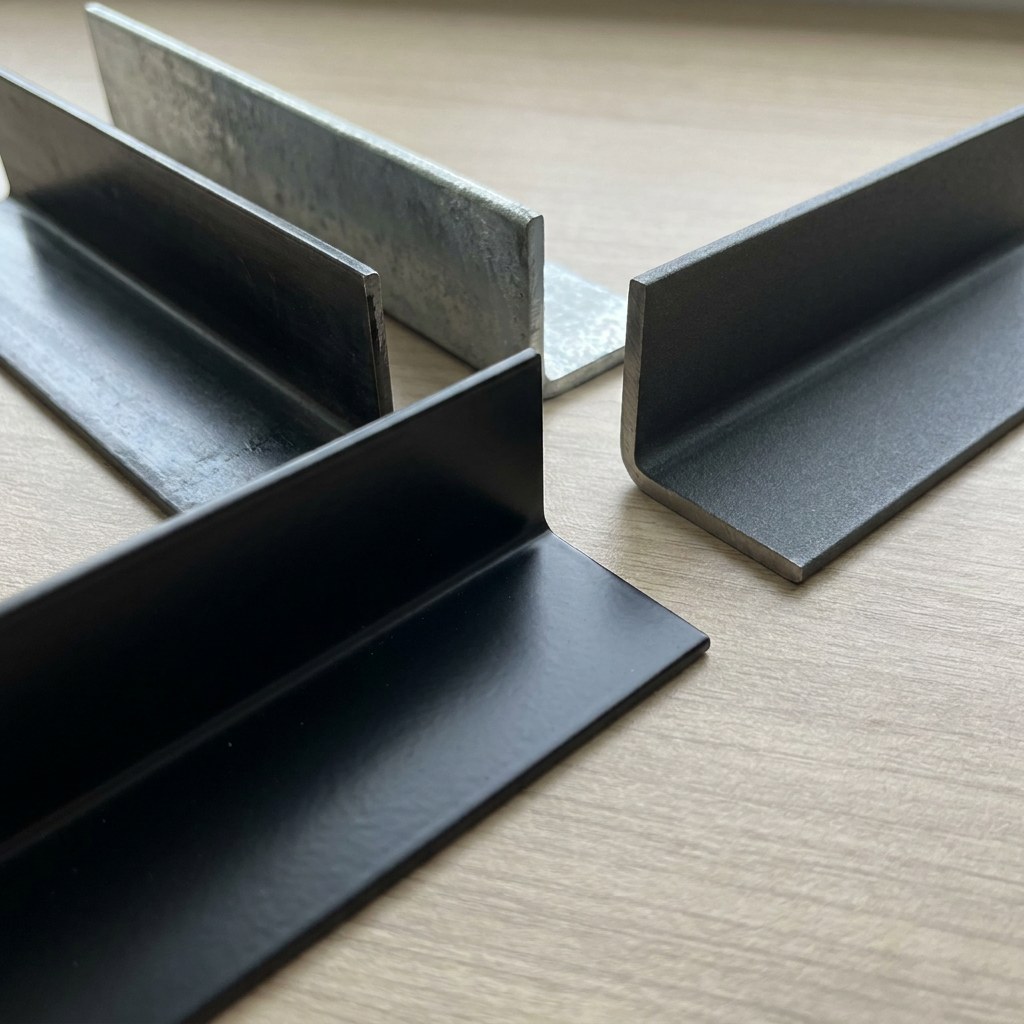

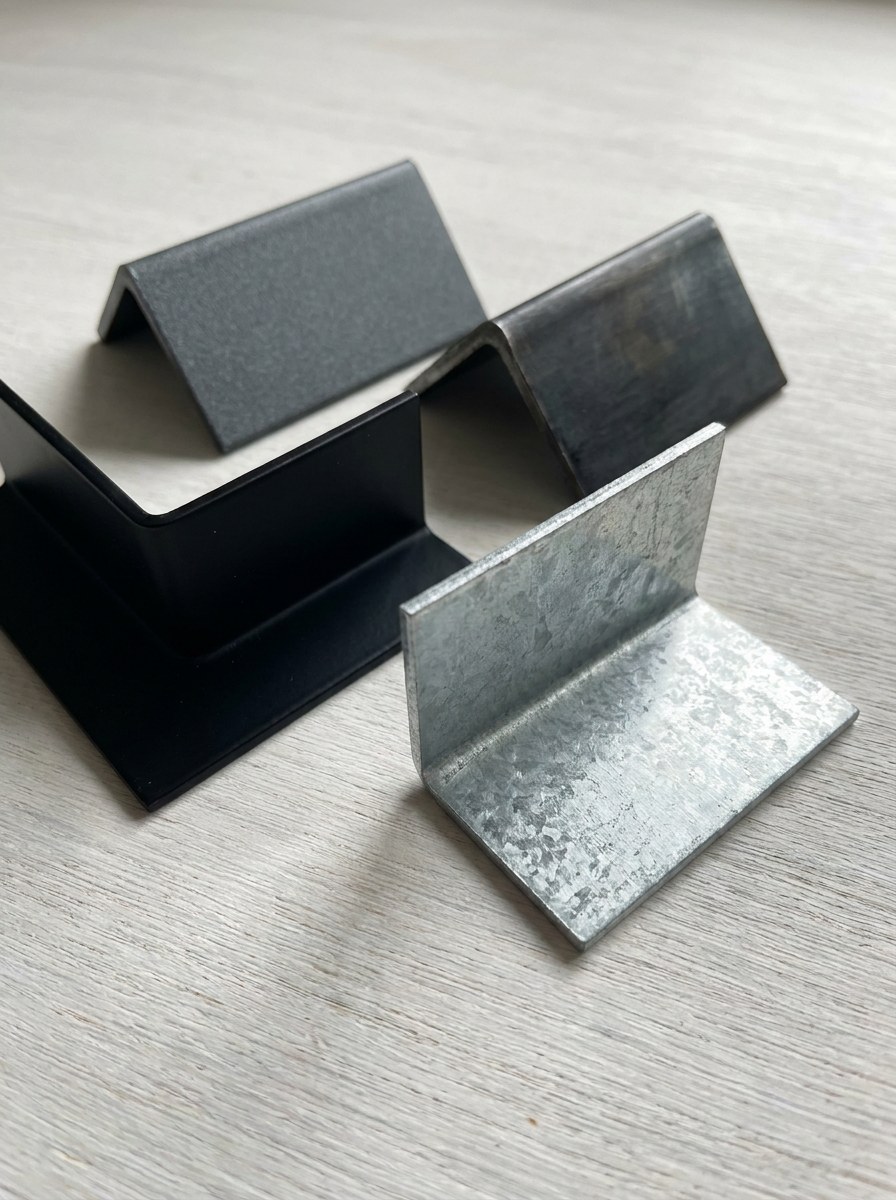

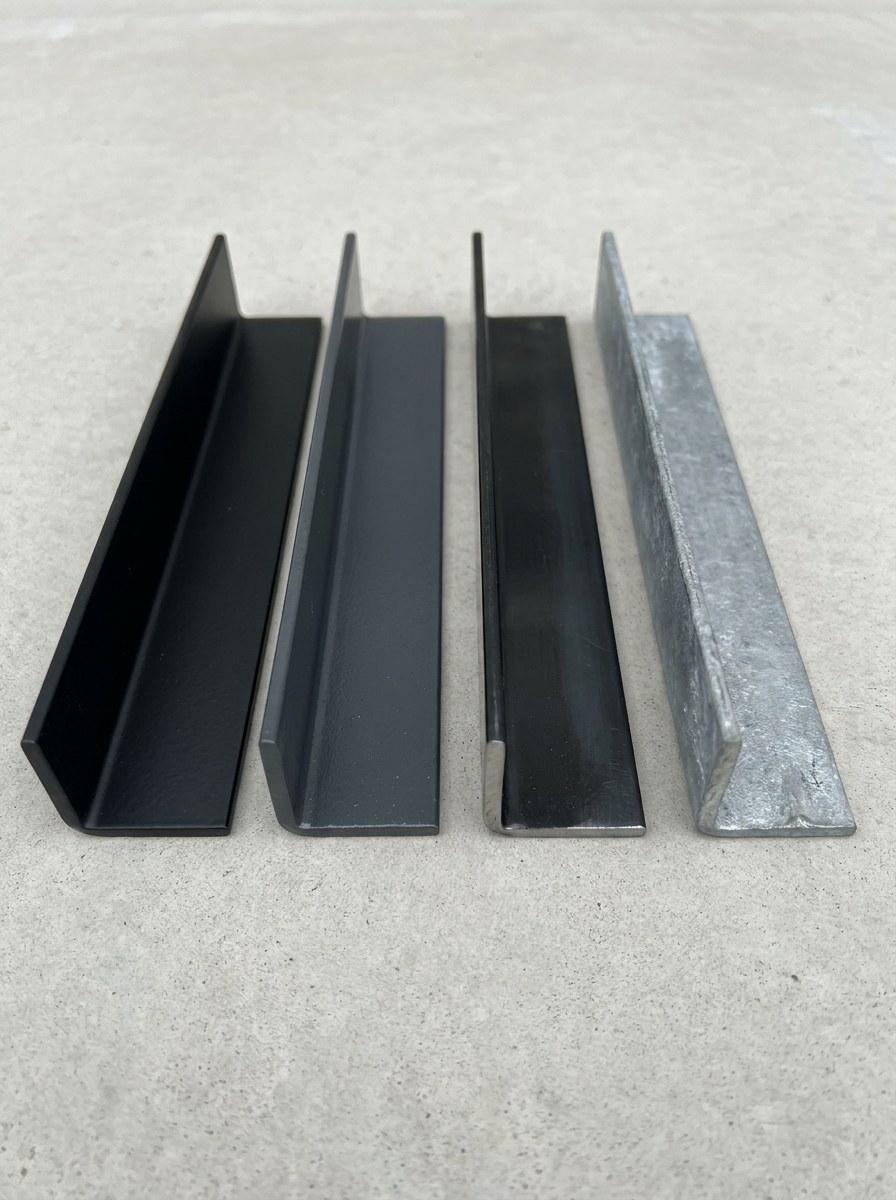

Steel corrodes if the coating is wrong, so finish is a durability decision before it is a colour one. External frames are shot-blasted and hot-dip galvanised to BS EN ISO 1461 at 45 to 85 microns, then powder coated at 60 to 80 microns. Internal frames skip galvanising and take a zinc-rich primer. 213 RAL colours are available in matt, satin or textured, with different colours inside and out. Inland, that stack runs 25 years before recoating. Hand-waxed blackened steel is left uncoated and needs re-waxing every 12 months.
Specify it when
Decide this on durability first: anything external, any bathroom or pool room, and any address within 5 km of salt water needs galvanising under the colour, whatever the colour is.
Specification
- Galvanising thickness
- 45 to 85 microns to BS EN ISO 1461
- Powder coat thickness
- 60 to 80 microns, polyester
- Colour range
- 213 RAL colours
- Gloss levels
- 10%, 30%, 70%
- Salt spray resistance
- 1000 hours to BS EN ISO 9227
- Dual colour
- Different RAL inside and out, all external systems
- Recoating interval, inland
- 25 years
- Blackened steel maintenance
- Re-wax every 12 months
- Touch-up
- Matched 400 ml aerosol supplied with every order
- Coating guarantee
- 10 years
- Lead time
- Standard RAL within the 6 to 8 week build; custom colour match adds 1 week
Configurations
- Single colour throughout
- Dual colour, inside and out
- Frame and leaf in different colours
- Hardware contrasting with frame
Finishes
- RAL 9005 matt black
- RAL 7016 anthracite
- RAL 9010 white, satin
- Textured 30% gloss
- Custom BS 4800 match
- Hot-dip galvanised, clear-lacquered
- Hand-waxed blackened steel
- Marine specification, coastal
Hardware
- Aged brass
- Antique bronze
- Blackened steel
- Satin nickel
- Polished chrome
Performance
- Thermal
- No measurable effect on Uw. Dark colours raise external surface temperature by up to 20 degrees C in summer sun
- Weather
- 1000 hours salt spray to BS EN ISO 9227; marine specification within 5 km of salt water
- Durability
- Galvanising plus polyester powder coat, 25 years inland before recoating
- Colour retention
- Delta E under 3 after 10 years on RAL matt shades
- Guarantee
- 10 years on coating adhesion and colour
