Skylights
An opening rooflight for rooms that need ventilation, on roofs from flat to 75 degrees, with an electric option that shuts itself when it rains.
- Opening leaf
- To 1500 x 2500 mm
- U-value
- From 1.2 W/m²K
- Lead time
- 6–8 wks
- Rain sensor on the electric unit closes it
- Electric or manual opening
- Thermally broken aluminium frame
The whole skylights square on and filling the frame, in the electric chain-opening configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 1500 x 2500 mm.
3:4

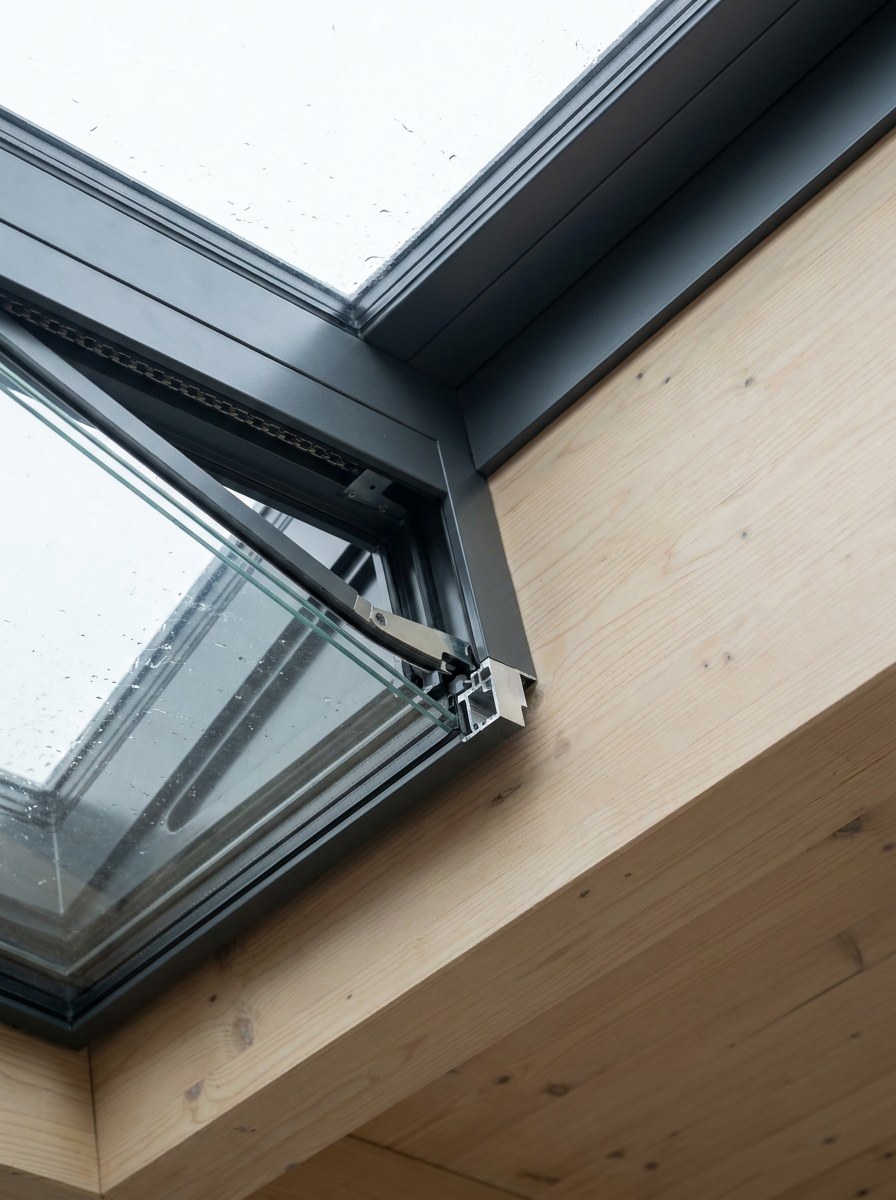

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the Thermally broken aluminium, 68 mm sightline sightline can be measured off the frame, with the background thrown out of focus.
1:1
The hand-level detail: 24 v chain actuator photographed in use on the 213 ral colours plus anodised finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

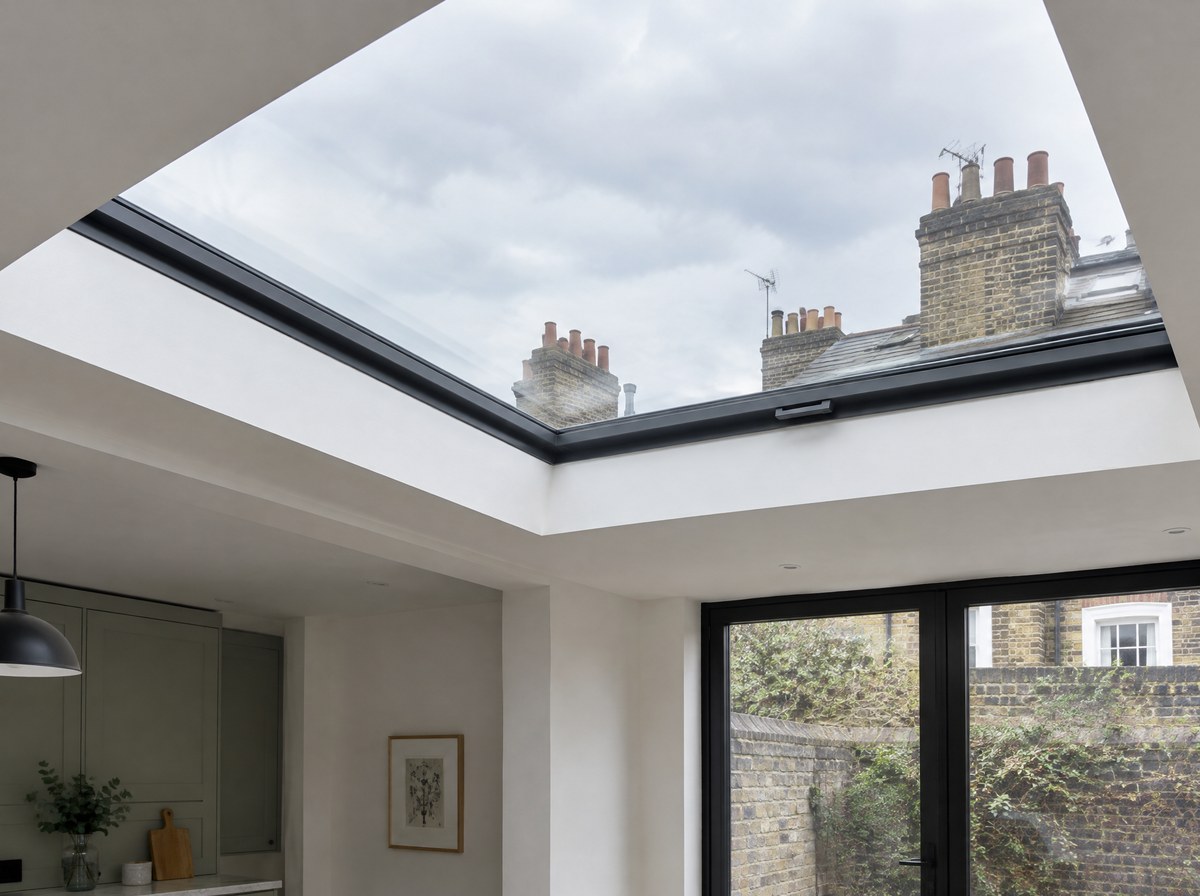

From inside the room looking out through the skylights, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The skylights at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Skylights
Description
A skylight opens. Sharp fits chain-actuated and manual units to roofs from flat to 75 degrees, with an opening leaf to 1500 x 2500 mm and a 68 mm frame sightline. The 24 V motor drives the leaf shut in 18 seconds and the rain sensor triggers it within eight seconds of first contact. The leaf glass is lighter than a fixed pane at 6 mm toughened over 6.8 mm laminated, which is what keeps it inside the actuator's duty. On a flat roof it sits on the same 5 degree kerb a rooflight needs.
Specify it when
A bathroom, kitchen or loft room that needs ventilation and heat purge overhead, or a pitched roof where a bonded pane cannot be used.
Specification
- Maximum opening leaf
- 1500 x 2500 mm
- Roof pitch range
- 0-75 degrees; flat roof units on a 5 degree kerb
- Opening action
- Chain actuator, 300 mm stroke, or hinged to 60 degrees
- Motor
- 24 V, closes in 18 seconds
- Rain sensor
- Closes within 8 seconds of first contact
- Frame
- Thermally broken aluminium, 68 mm sightline
- Glass build-up
- 6 mm toughened / 16 mm argon / 6.8 mm laminated inner
- Air permeability
- Class 4 to BS 6375
- Guarantee
- 10 years
- Lead time
- 6-8 weeks from survey to install
Configurations
- Electric chain-opening
- Manual pole-operated
- Hinged access unit with 60 degree hold-open
- Fixed and opening panes paired on one kerb
Glass
- Double or triple glazed
- Solar control, g 0.28
- Acoustic laminate
- Obscure for bathrooms
- Self-cleaning outer
Finishes
- 213 RAL colours plus anodised
- Matt, satin or textured
- Dual colour inside and out
Hardware
- 24 V chain actuator
- Wall keypad or app control
- Rain sensor
- Manual winder pole to 3 m
- Restrictor on access units
Performance
- Thermal
- Uw from 1.2 W/m2K on the opening unit
- Acoustic
- 39 dB on an opening leaf, up to 44 dB on a paired fixed pane with triple glazing
- Security
- PAS 24 where the unit is reachable; laminated inner pane
- Weather
- Class 4 air permeability to BS 6375; rain sensor closes the leaf automatically
