Feature Glazing
Engineered overhead glass for when it carries load, turns a corner without a post, or brings daylight down through a floor.
- Walk-on loading
- 5.0 kN/m²
- Glass beam
- To 4500 mm span
- Lead time
- 6–8 wks + sign-off
- Glass roof links to 3500 mm wide
- Anti-slip frit on walk-on panels
- Signed off by our structural engineer
The whole feature glazing square on and filling the frame, in the walk-on floor panels configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective.
3:4

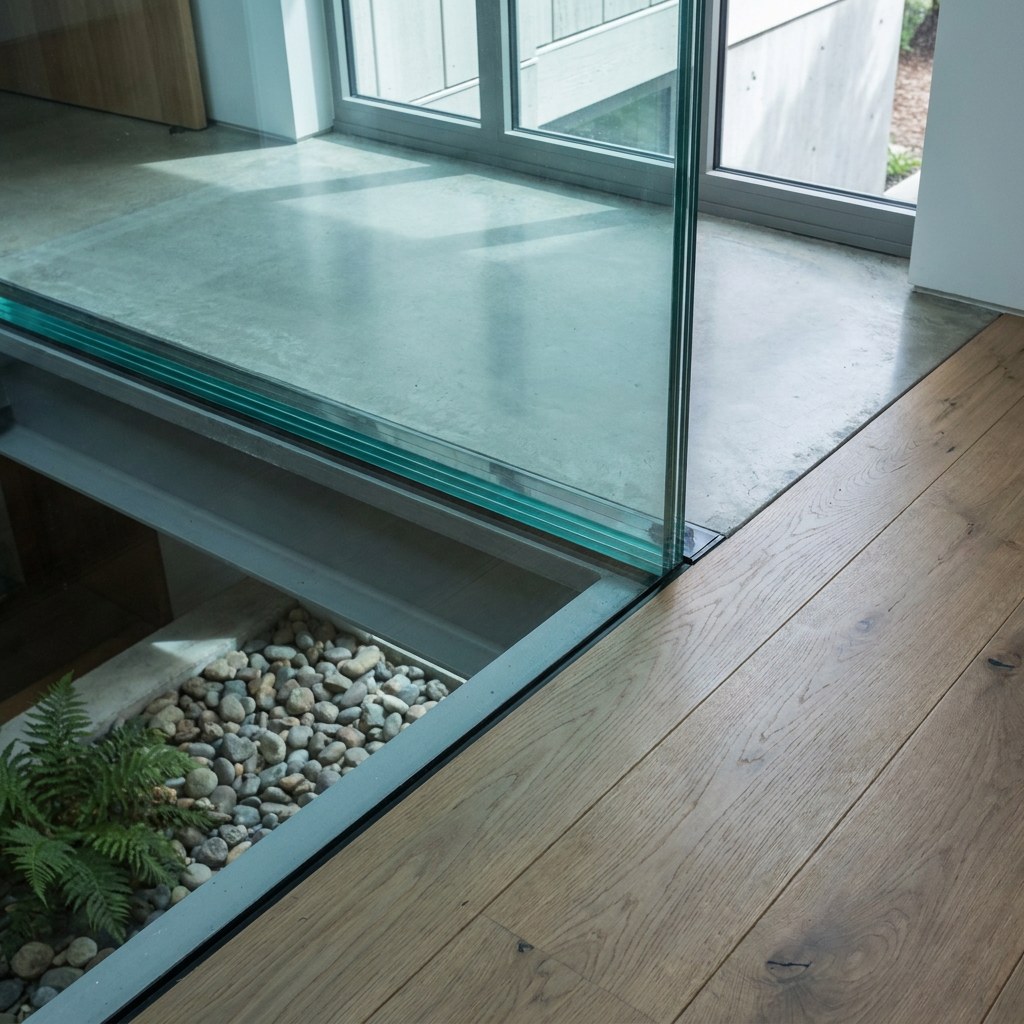

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible, with the background thrown out of focus.
1:1
The hand-level detail: concealed structural carriers photographed in use on the frameless finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

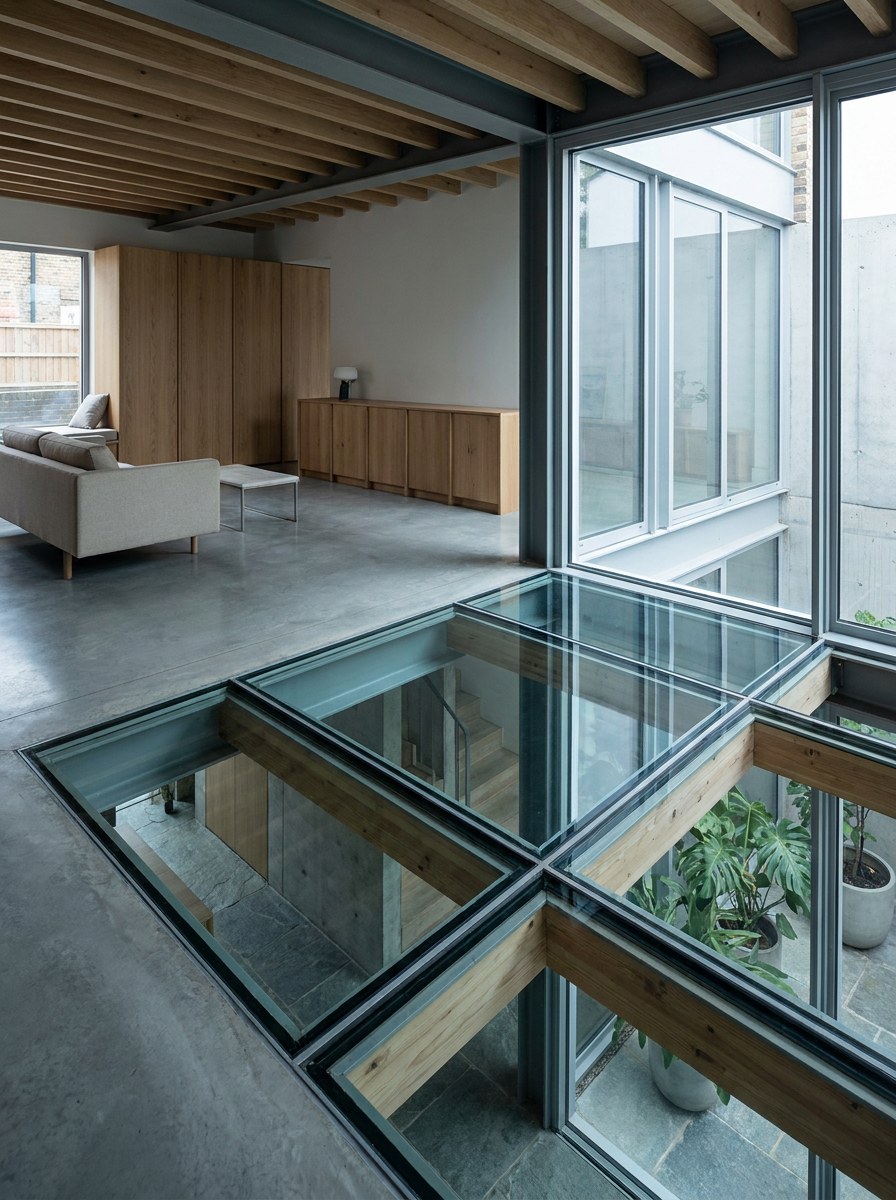

From inside the room looking out through the feature glazing, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The feature glazing at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Feature Glazing
Description
Feature glazing is the work that gets engineered rather than ordered. Walk-on floor panels to 1800 x 3000 mm at 5.0 kN/m2, built as a 10 mm toughened top layer over two 10 mm heat-soaked laminated plies. Mitred roof-to-wall corners with no post. Glass roof links to 3500 mm wide and 6000 mm long. Structural glass beams spanning 4500 mm in three 15 mm laminated plies. Every job carries calculations to BS EN 1990 and BS 5516-2 signed by our structural engineer. Add about two weeks for that sign-off before manufacture starts.
Specify it when
The detail carries load, turns a corner without a post, or lets daylight into a basement through the floor above.
Specification
- Walk-on panel size
- To 1800 x 3000 mm
- Walk-on loading
- 5.0 kN/m2 imposed, verified per project
- Walk-on build-up
- 10 mm toughened top over 2 x 10 mm heat-soaked laminated core
- Structural glass beam
- To 4500 mm span, 3 x 15 mm laminated
- Glass roof link
- To 3500 mm wide, 6000 mm long
- Roof-to-wall corner
- Mitred structural silicone joint, no corner post
- Fall
- Sealed overhead panels on a minimum 5 degree fall; walk-on floor panels laid level with a drained perimeter
- Slip resistance
- Anti-slip ceramic frit, PTV 40+ wet
- Engineering
- Calculations to BS EN 1990 and BS 5516-2, signed by our structural engineer
- Guarantee
- 10 years
- Lead time
- 6-8 weeks from survey to install, plus about two weeks for structural sign-off on walk-on and beam work
Configurations
- Walk-on floor panels
- Glass roof link between two buildings
- Mitred roof-to-wall corner
- Structural glass beams and fins
- Frameless upstand to a roof opening
Glass
- Heat-soaked toughened laminated throughout
- Anti-slip ceramic frit
- Solar control, g 0.28
- Low iron for clear edges
- Acoustic interlayer
Finishes
- Frameless
- Brushed or polished stainless trims
- Concealed aluminium carriers in 213 RAL colours plus anodised
Hardware
- Concealed structural carriers
- Stainless setting blocks
- No visible fixings above the line of sight
Performance
- Thermal
- Uw from 1.0 W/m2K on sealed overhead units
- Loading
- 5.0 kN/m2 imposed on walk-on panels, confirmed by calculation per project
- Acoustic
- Up to 44 dB with triple glazing
- Weather
- BS 6375 weathertightness, BS 5516-2 overhead glazing
