Hardware
Locks, cylinders, hinges and handles, specified together and matched across glazing and steel.
- Locking points
- 5 per leaf
- Cylinder
- TS 007 3-star
- Finishes
- 12, plus 213 RAL
- PAS 24 tested as a complete assembly
- Concealed hinges to 100 kg per leaf
- 10-year mechanical guarantee
The whole hardware square on and filling the frame, in the lever / lever configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 5, espagnolette with shootbolts.
3:4
Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible, with the background thrown out of focus.
1:1
The hand-level detail: multi-point lock, 5 point photographed in use on the satin stainless finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

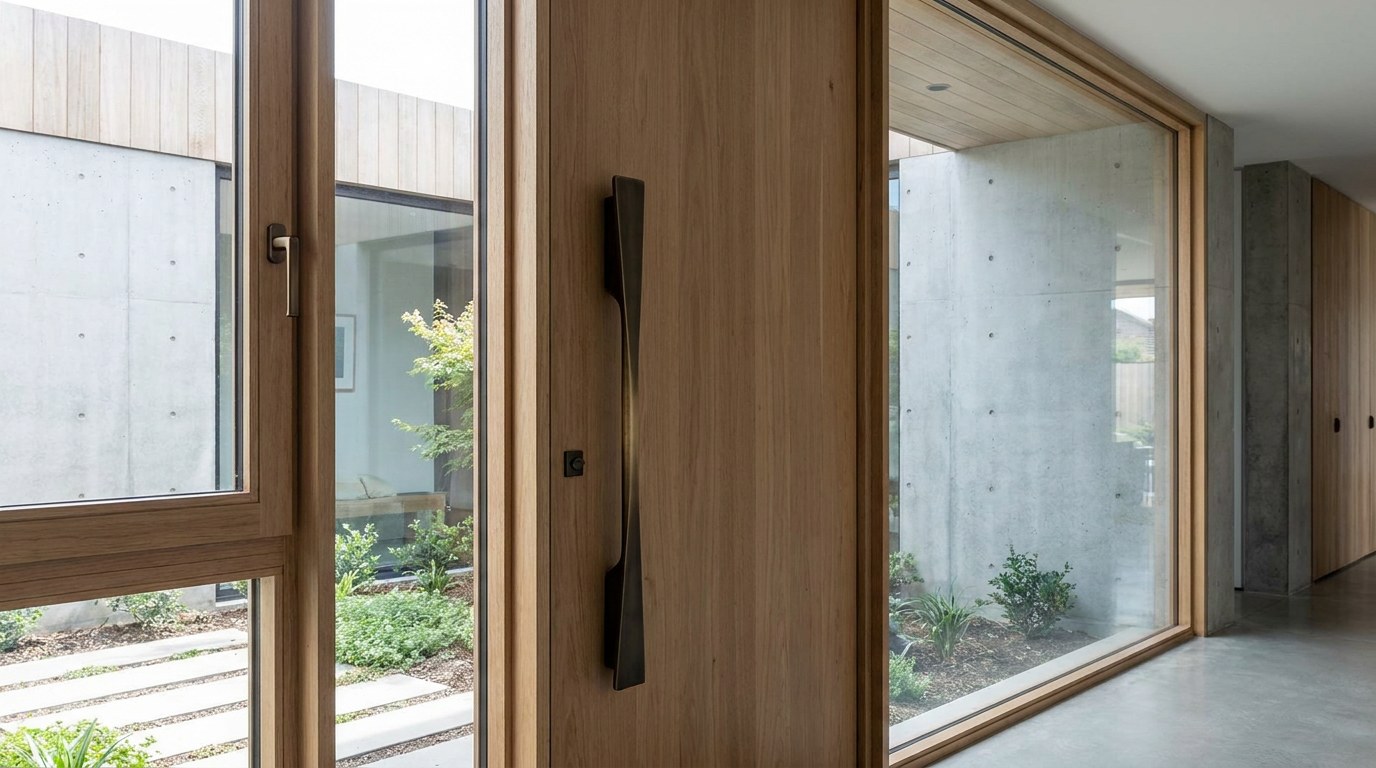

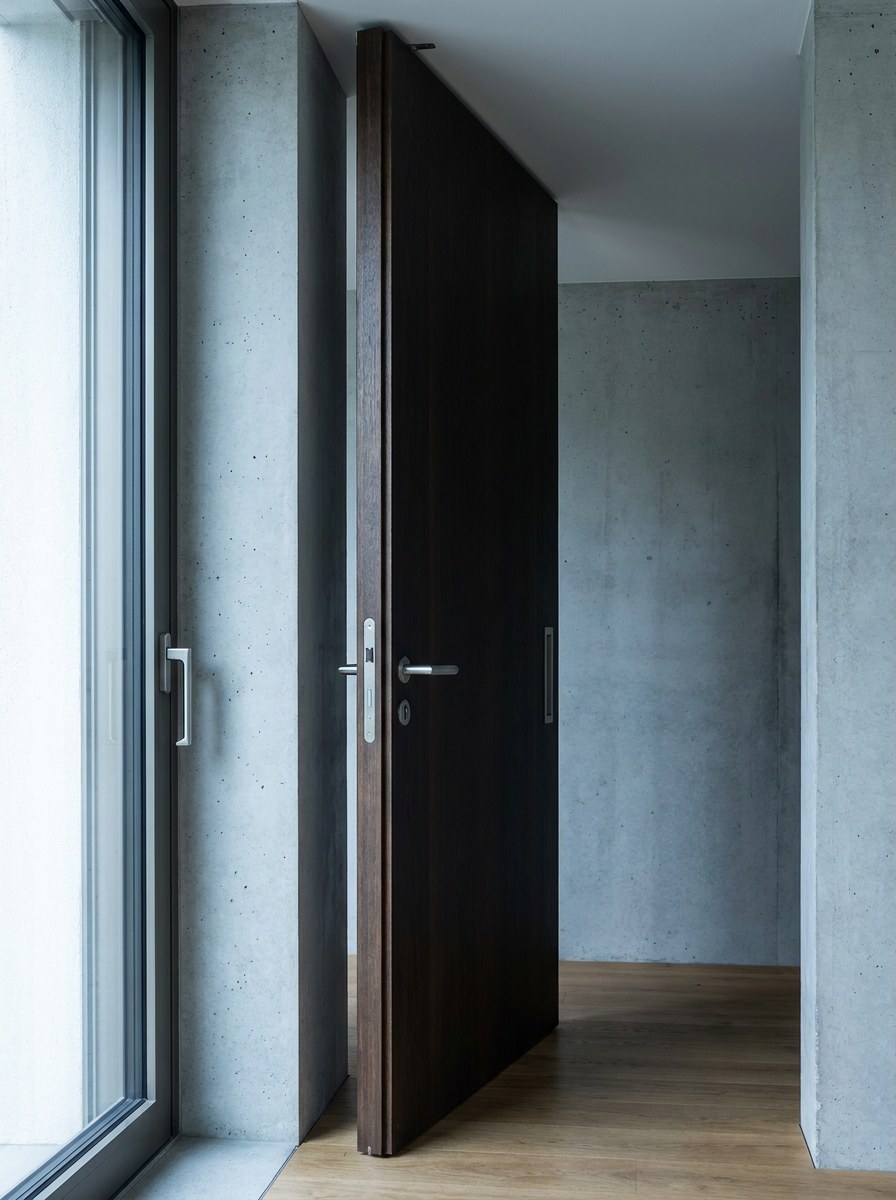

From inside the room looking out through the hardware, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The hardware at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Hardware
Description
Hardware carries the security rating. PAS 24 is tested as a complete assembly, so the cylinder, hinges and multi-point lock are specified together rather than picked from a photograph. Standard leaves run five locking points with top and bottom shootbolts. Cylinders are TS 007 three-star, anti-snap. Concealed hinges take a 100 kg leaf; sliding rollers take 400 kg, which is what a 3000 x 3200 mm triple-glazed leaf needs. Finishes are shared across glazing and steel, so a door handle and a window handle in the same house match.
Specify it when
Decide it last. It is the only detail you can revise after installation — handles, cylinders and restrictors unscrew.
Specification
- Locking points per leaf
- 5, espagnolette with shootbolts
- Cylinder
- TS 007 3-star, anti-snap
- Security standard
- PAS 24, Secured by Design
- Concealed hinge capacity
- 100 kg per leaf
- Handle spindle and centres
- 8 mm spindle, 92 mm PZ
- Sliding roller capacity
- 400 kg per leaf, stainless steel
- Restrictor opening
- 100 mm, child-safe
- Standard finishes
- 12, plus any of 213 RAL to match the frame
- Mechanical guarantee
- 10 years
- Lead time
- Stock finishes inside the 6-8 week programme; anodised and non-stock RAL add 2 weeks
Configurations
- Lever / lever
- Lever / pad handle
- Pull handle 1200 mm
- Flush concealed handle
- Espagnolette with top and bottom shootbolt
Finishes
- Satin stainless
- Polished chrome
- Matt black RAL 9005
- Antique bronze
- Powder-coated to frame RAL
Hardware
- Multi-point lock, 5 point
- TS 007 3-star cylinder
- Concealed hinge, 100 kg
- Trickle vent, 4000 mm2 EA
- Letter plate 260 x 70 mm
Performance
- Security
- PAS 24 as a complete assembly; Secured by Design licensed
- Thermal
- Thermally broken furniture; no measurable effect on Uw from 1.0 W/m2K
- Weather
- Compression gaskets set by the lock throw; BS 6375 tested as installed
- Durability
- 20,000 open-and-close cycles; 10-year mechanical guarantee
