Top lights

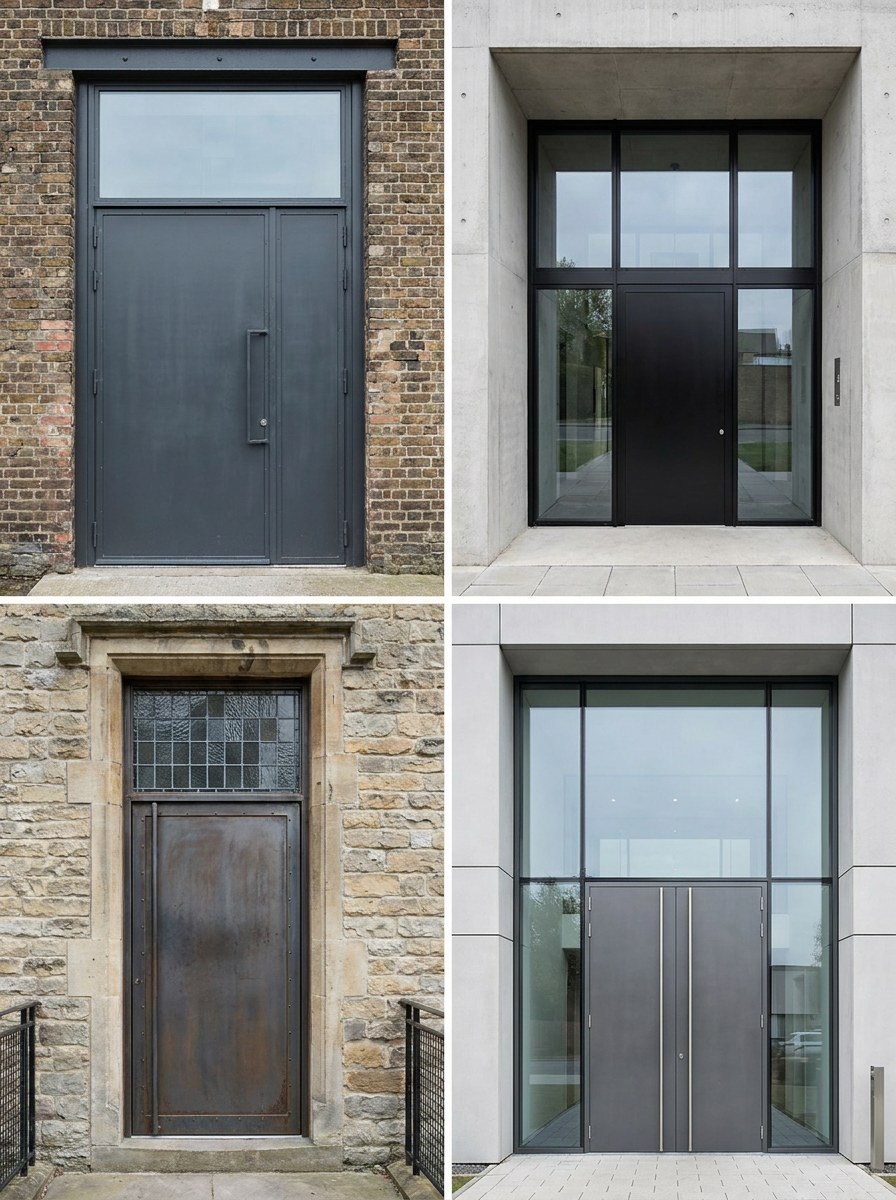

A fixed glazed panel above the door for tall Georgian and Victorian openings and arched heads, so the door stays a normal height.
- Height
- 300 to 900 mm
- Assembly height
- To 3600 mm
- Lead time
- 8 wks
- Square, segmental or semi-circular heads
- Radial fan bars: 3, 5 or 7
- No added weight on the door leaf

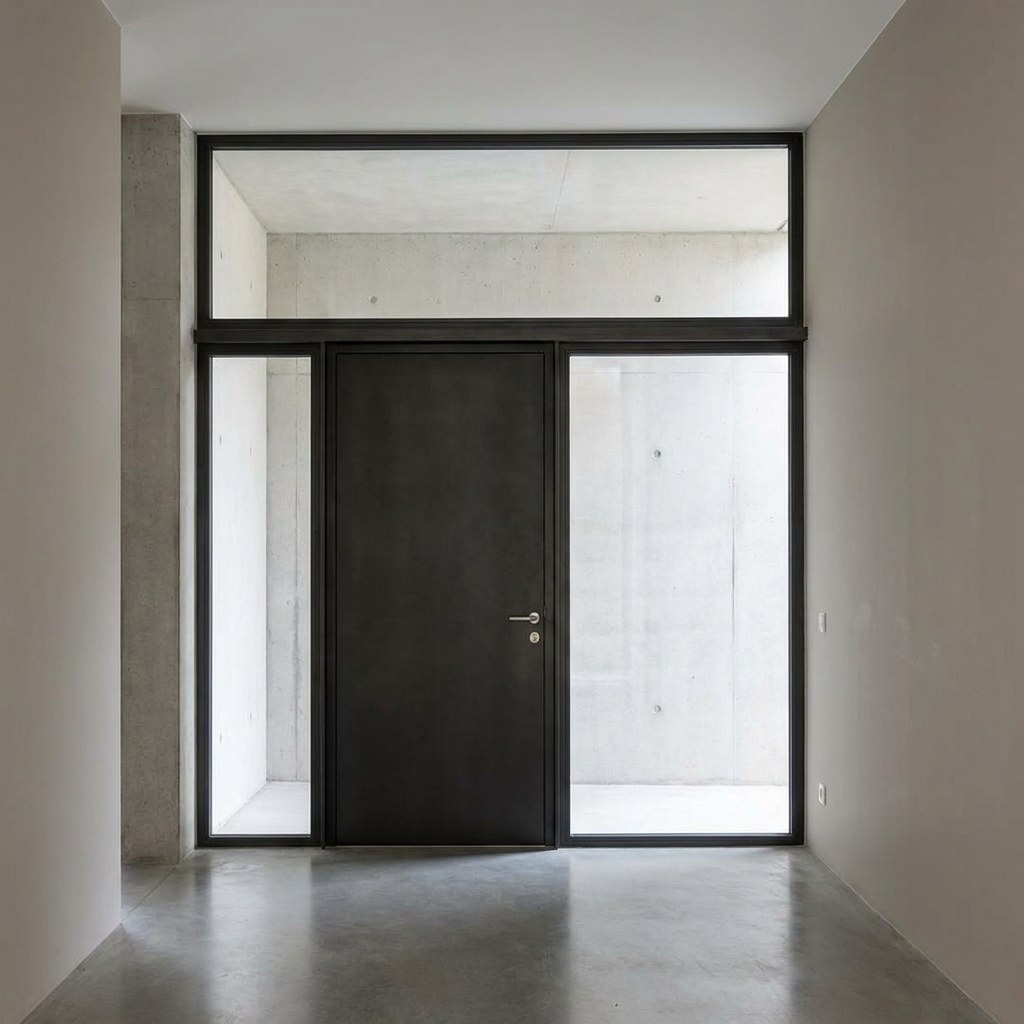

The whole top lights square on and filling the frame, in the square head configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 3600 mm.
3:4

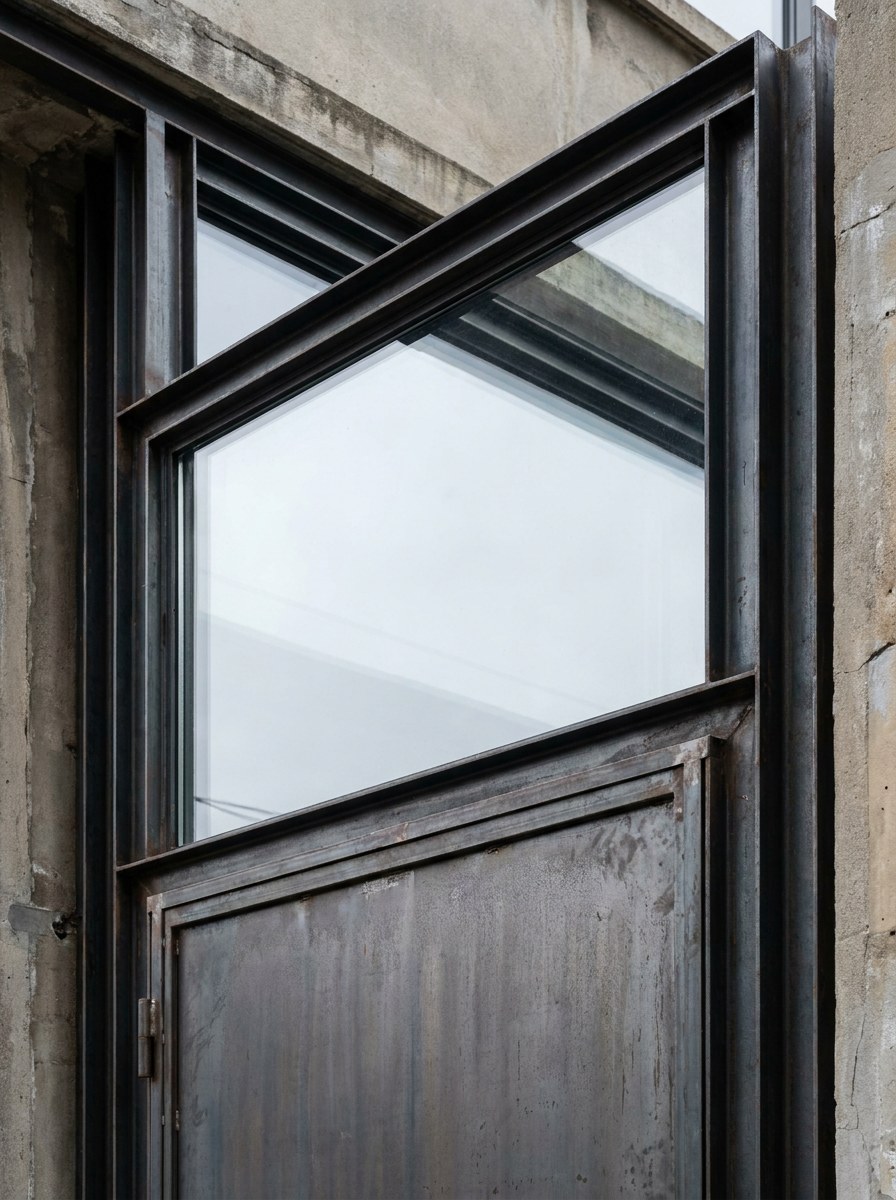

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible, with the background thrown out of focus.
1:1
The hand-level detail: no moving hardware photographed in use on the 213 ral colours finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

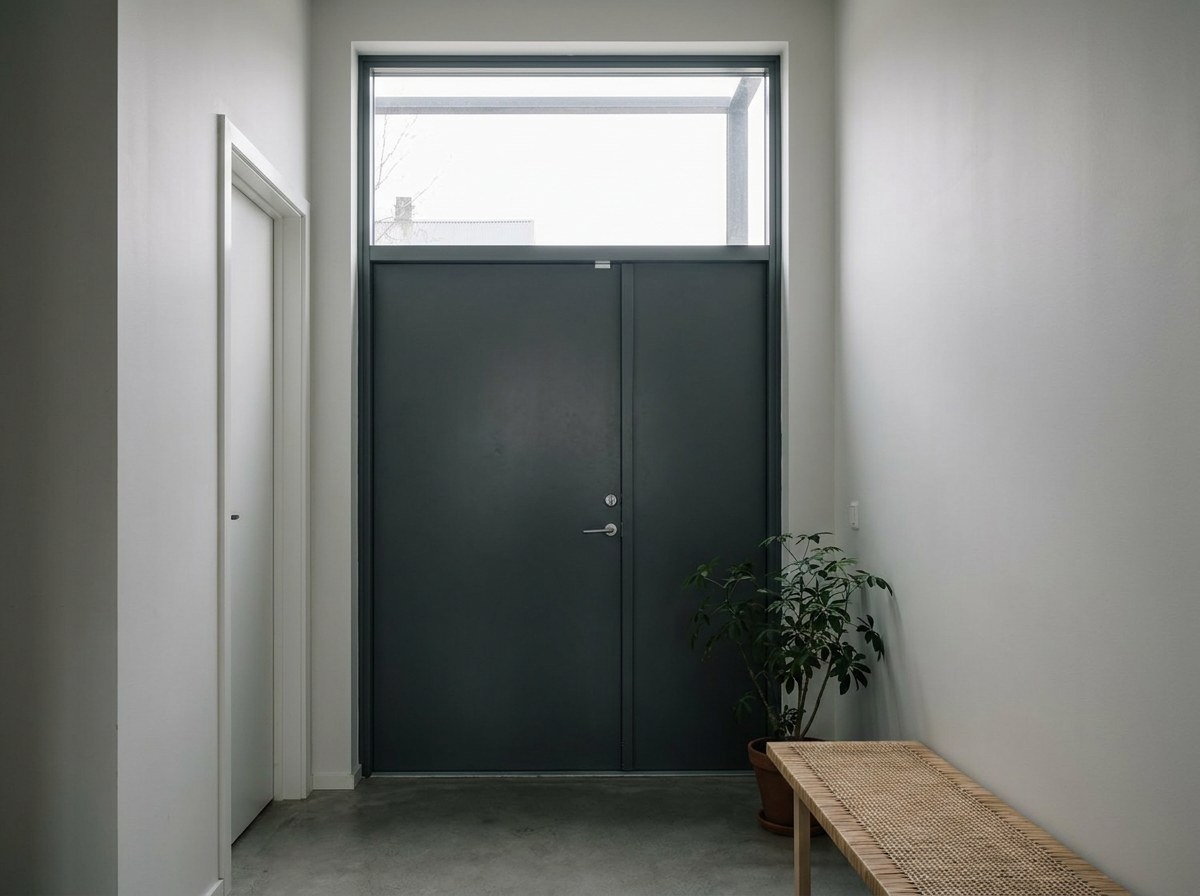

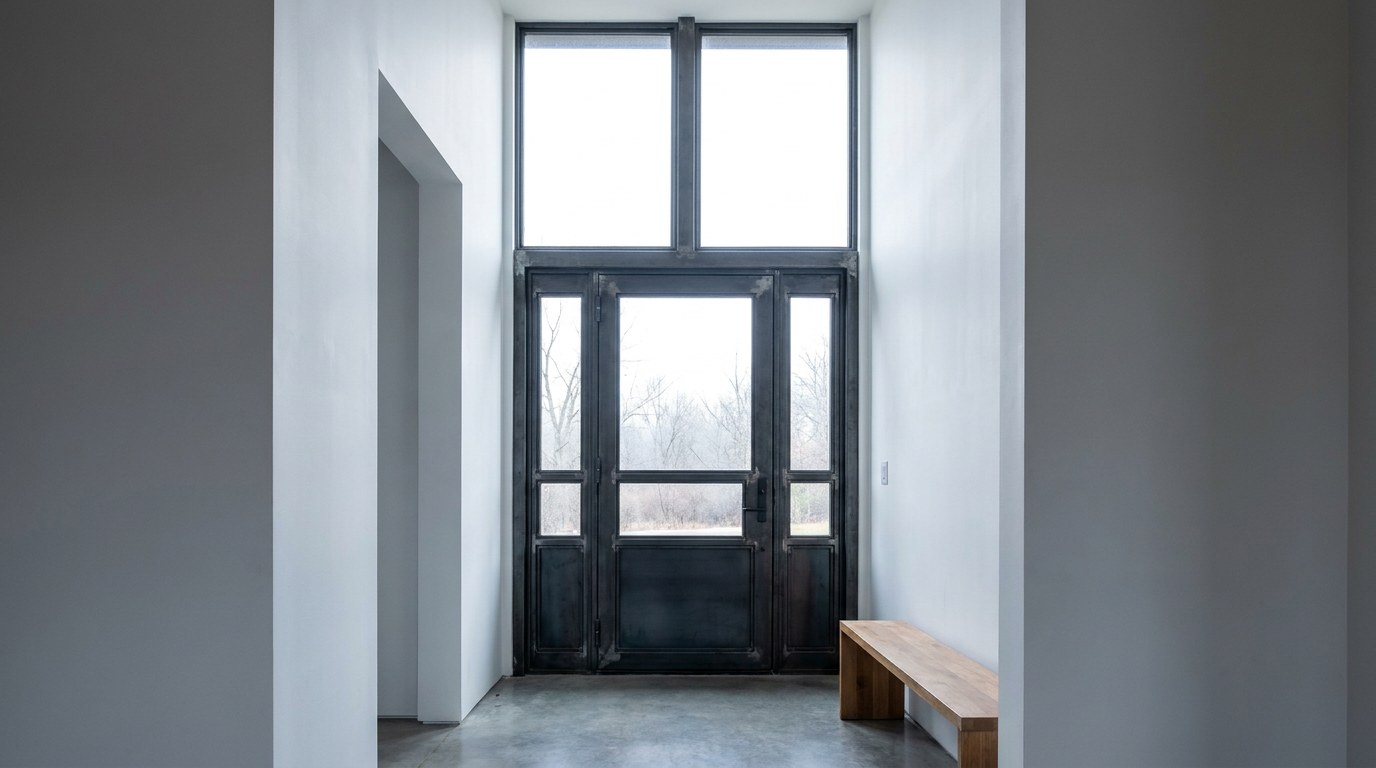

From inside the room looking out through the top lights, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The top lights at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Top lights
Description
Openings taller than 2700 mm need a transom. A taller leaf loads the hinges and slows the door; a top light adds the height in glass instead. The transom reads 55 mm and lines through with the side panel heads where both are specified. Square, segmental and semi-circular heads are all welded, with radii from 600 mm. Over a Secured by Design door the top light has to be laminated on both leaves, or the rating stops at the transom.
Specify it when
Georgian and Victorian openings over 2700 mm tall, and any arched head, where the door itself should stay a normal height.
Specification
- Height range
- 300 to 900 mm
- Transom face width
- 55 mm
- Maximum assembly height, door plus top light
- 3600 mm
- Maximum single pane
- 2400 x 900 mm
- Head shapes
- Square, segmental, semi-circular
- Minimum arch radius
- 600 mm
- Glazing
- 28 mm laminated double, both leaves laminated on rated assemblies
- Radial fan bars
- 3, 5 or 7 bars at 20 mm face
- Lead time
- 8 weeks from survey, arched and fan heads included
Configurations
- Square head
- Segmental arch
- Semi-circular fan
- Full assembly width or over the door only
- With or without matched side panel heads
- Fixed only, no opening top lights
Glass
- 28 mm laminated double
- 44 mm triple
- Obscure, reeded or sandblasted
- Leaded and stained glass encapsulated in the cavity
- P5A security laminate
Finishes
- 213 RAL colours
- Matched to the door
- Matt, satin or textured
- Dual colour inside and out
Hardware
- No moving hardware
- Welded radial fan bars, 20 mm face
- Concealed transom anchors
- Capped bead or structural silicone glazing
Performance
- Thermal
- Up 1.3 W/m2K with 28 mm double glazing
- Acoustic
- Rw 39 dB with acoustic laminate
- Security
- Laminated both leaves to hold PAS 24 across the full assembly
- Weather
- BS 6375 · water tightness Class 9A at 600 Pa · transom drained and vented
