Single and double doors
A single leaf to 1200 mm, or a pair that clears up to 2400 mm with no fixed mullion in the way.
- Single leaf
- 1200 x 2700 mm
- Pair opening
- 2400 x 2700 mm
- Lead time
- 8 wks
- 80 mm meeting stile, no fixed mullion
- Unequal pairs from 1/3 to 2/3
- PAS 24:2022 on both leaves

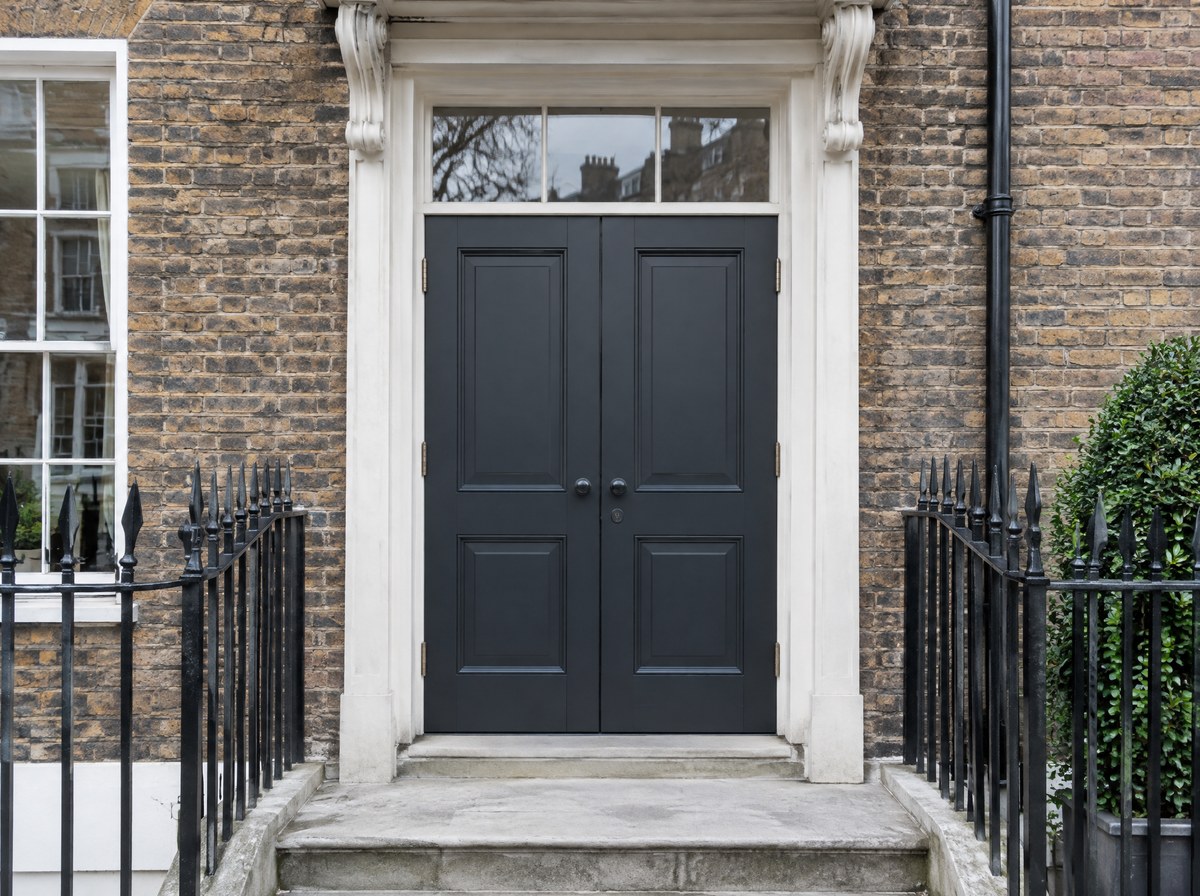

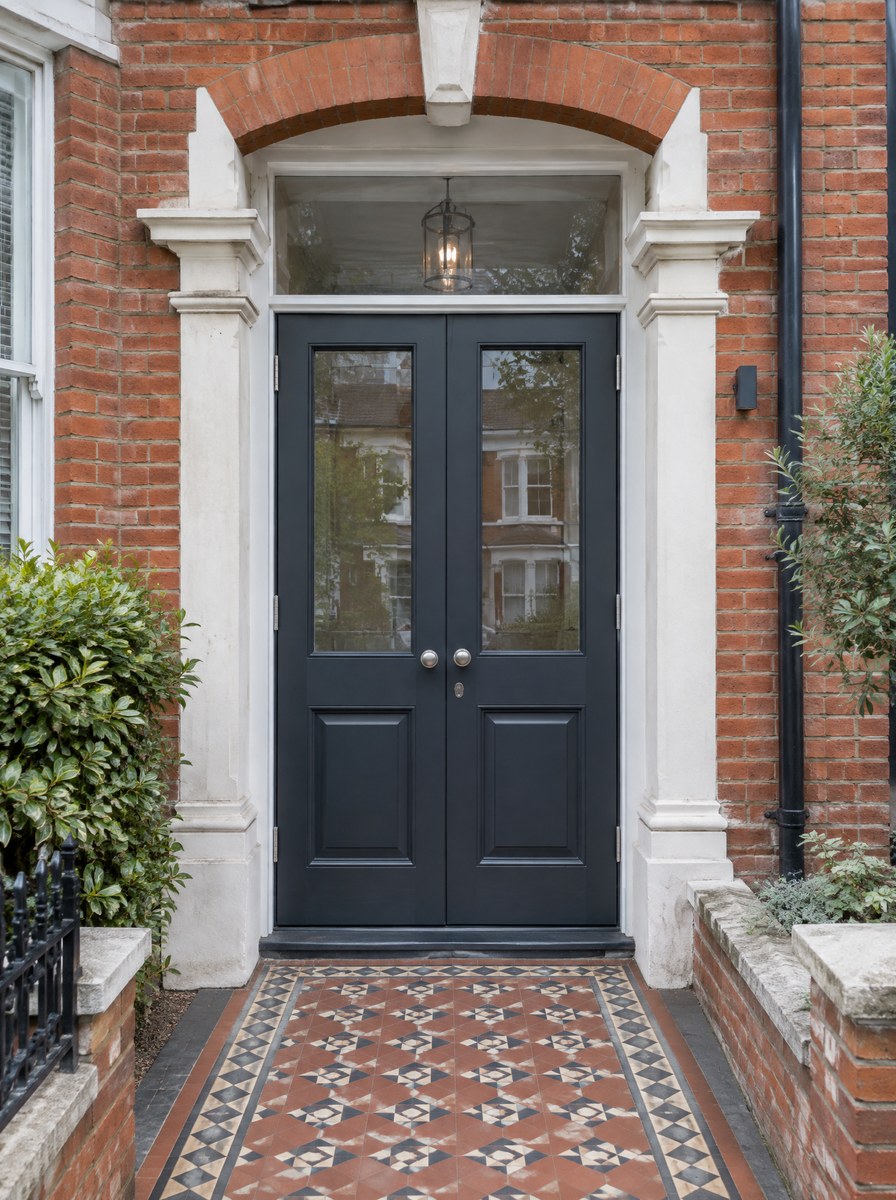

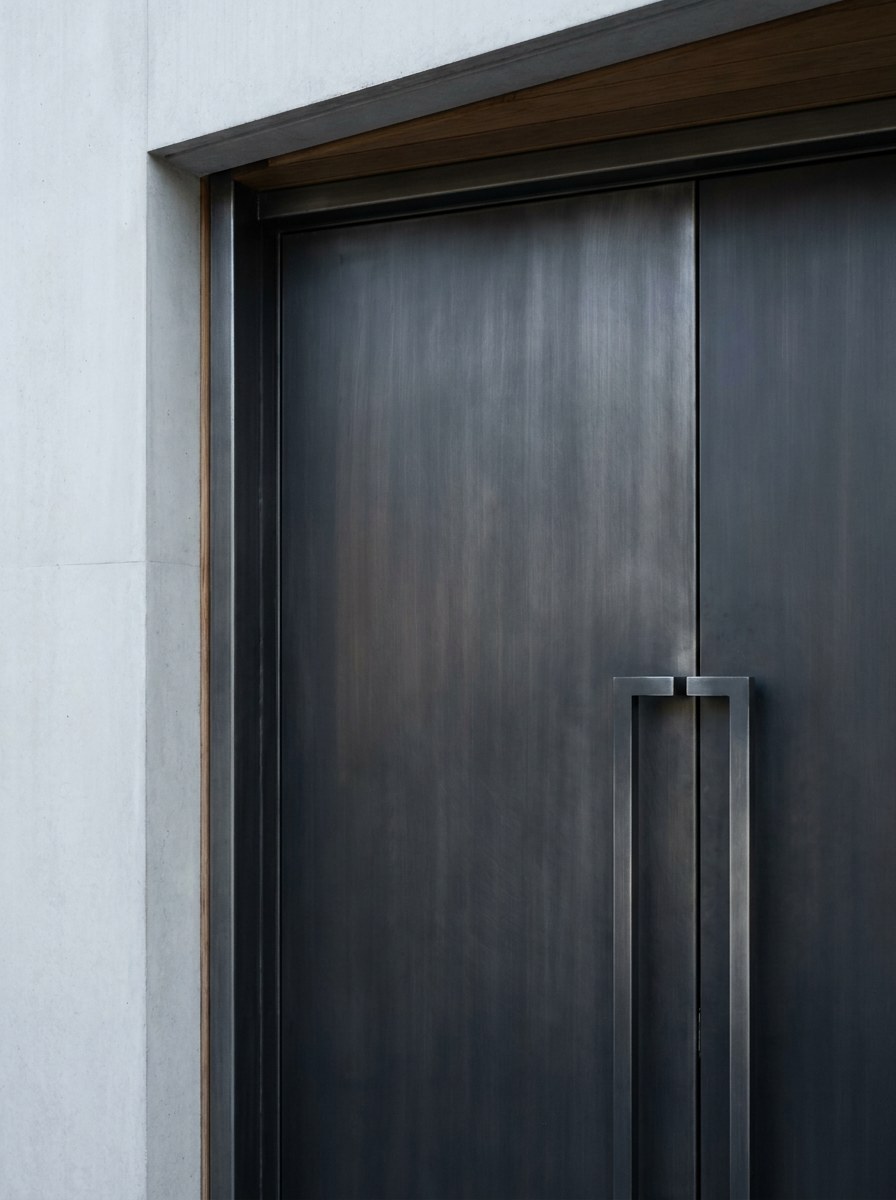

The whole single and double doors square on and filling the frame, in the single left or right hand configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 1200 x 2700 mm.
3:4

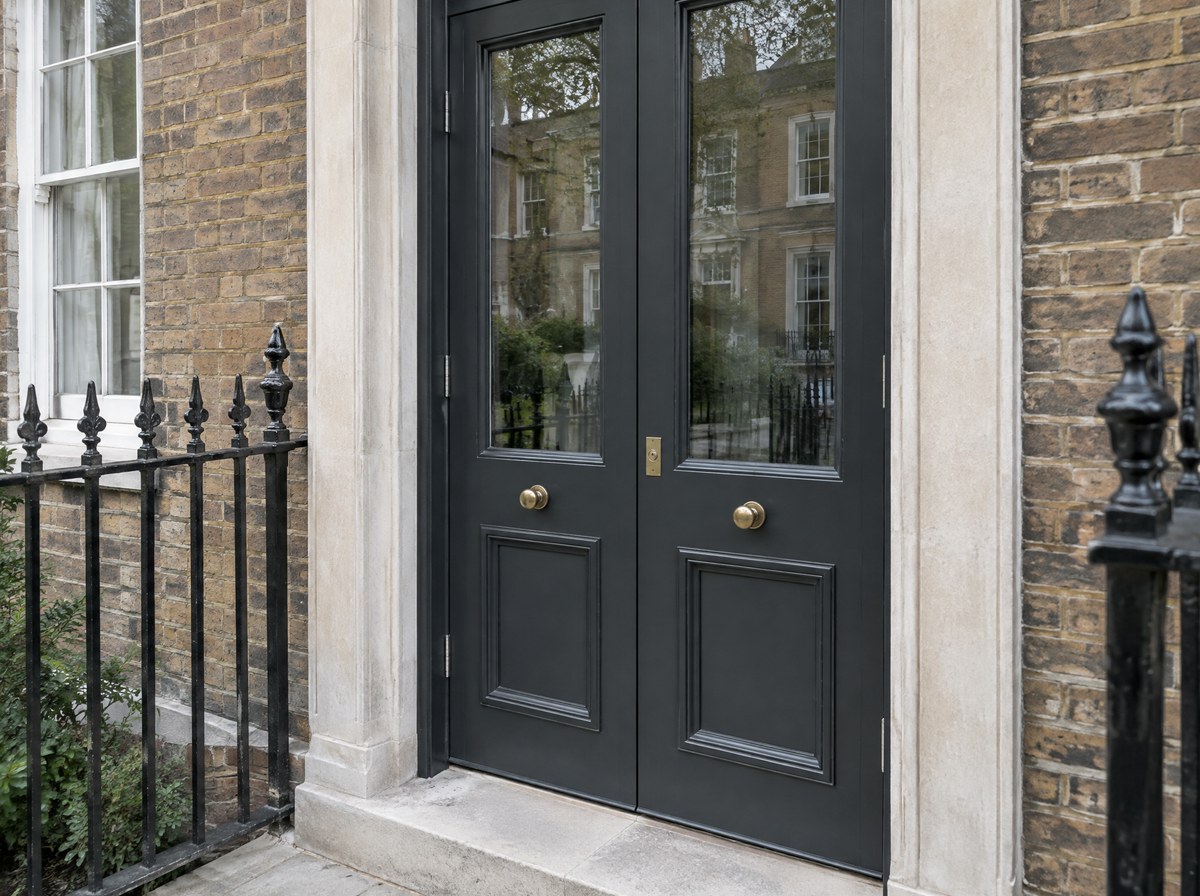

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible, with the background thrown out of focus.
1:1
The hand-level detail: 5-point lock on the active leaf photographed in use on the 213 ral colours finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

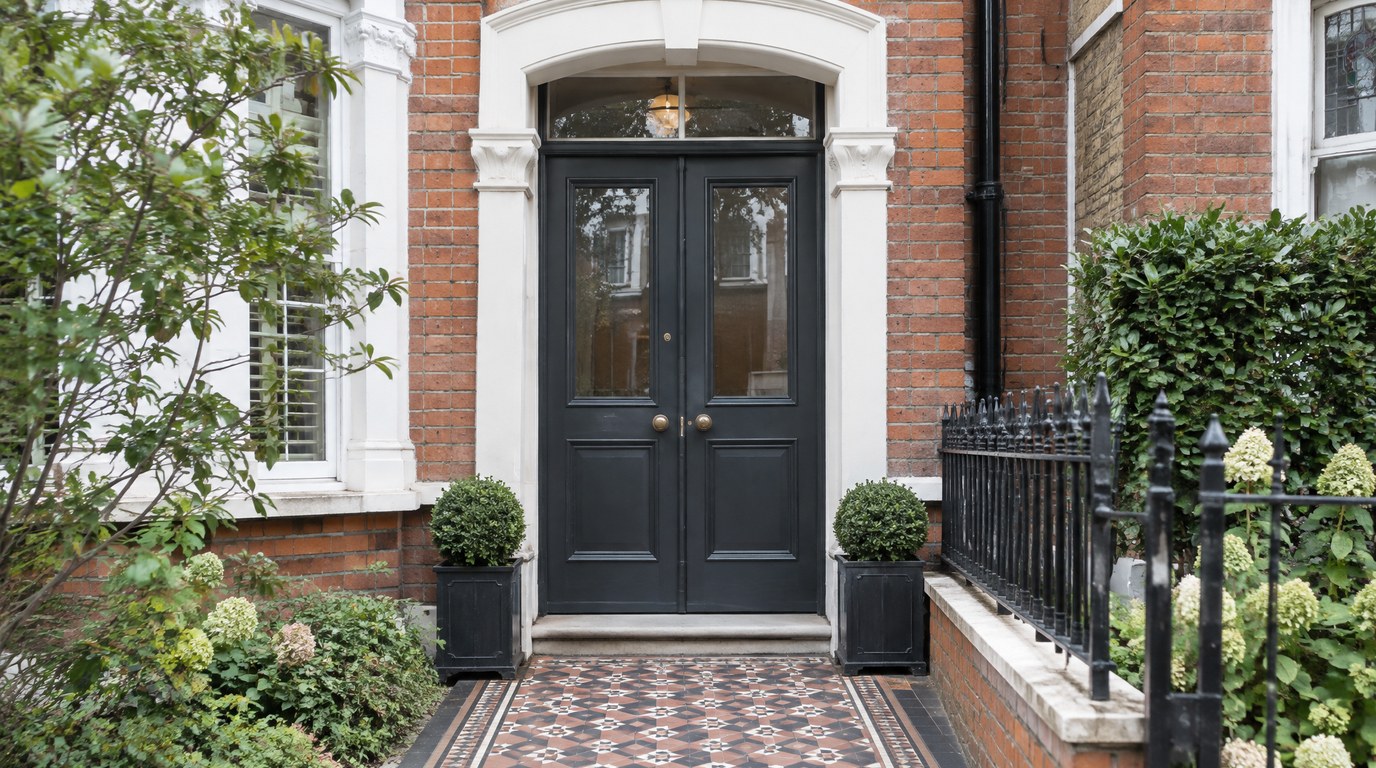

From inside the room looking out through the single and double doors, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9

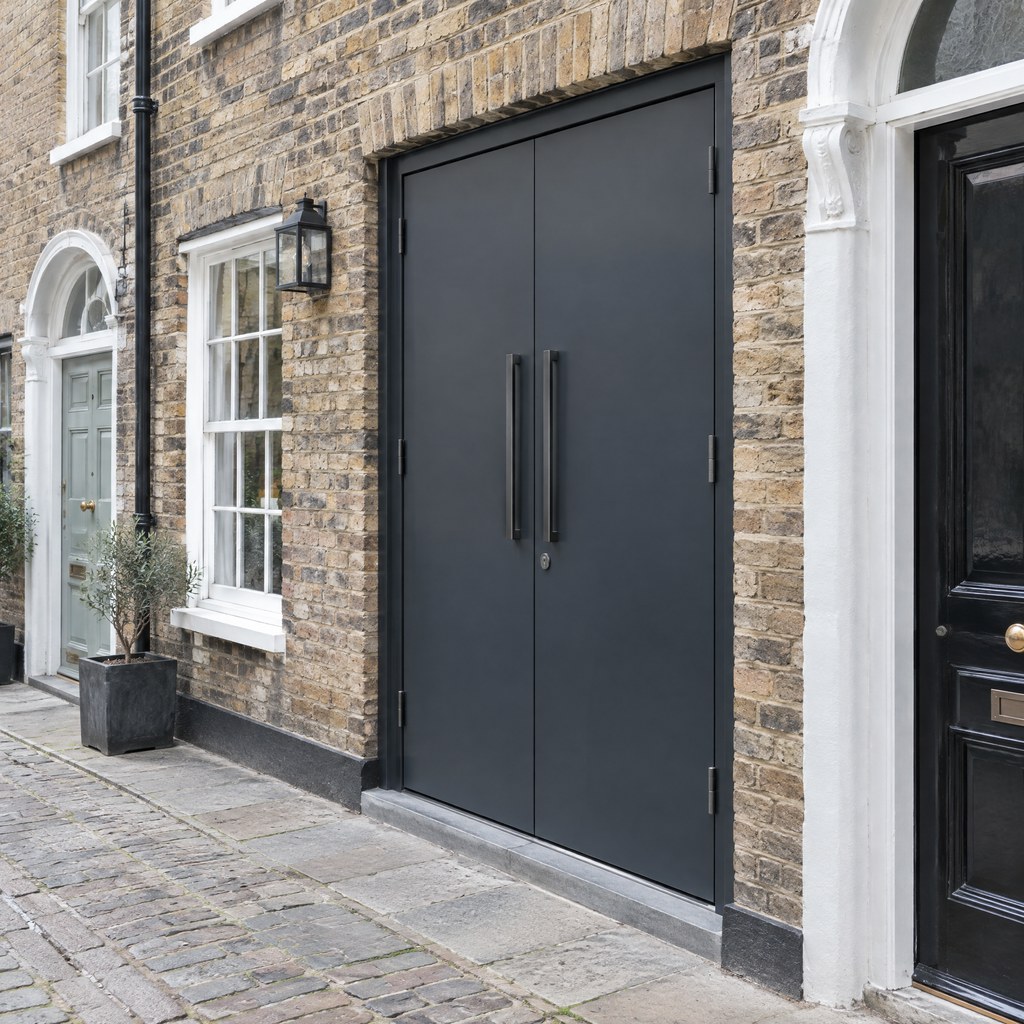

The single and double doors at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Single and double doors
Description
Same section, same locking, one moving leaf or two. A single leaf has one lock, one set of seals and one line of adjustment, and holds water tightness at Class 7A. A pair clears the full opening, which a single leaf with side panels cannot, at the cost of a meeting stile, a second locking set and a drop-down threshold seal. Unequal pairs run from a 1/3 to 2/3 split, so on an 1800 mm opening the 600 mm passive leaf stays bolted for daily use.
Specify it when
Openings between 1800 and 2400 mm where the whole width has to clear: furniture access, a rear garden opening, or a commercial entrance.
Specification
- Single leaf maximum
- 1200 x 2700 mm
- Double pair maximum
- 2400 x 2700 mm structural opening
- Meeting stile face, closed
- 80 mm
- Unequal split range
- 1/3 to 2/3
- Passive leaf fixing
- Head and cill shootbolts, 20 mm throw
- Leaf weight, pair at maximum
- 90 kg each
- Threshold seal
- Drop-down, 12 mm compression
- Hinges
- 3 per leaf, 4 per leaf above 2400 mm height
- Clear opening width, pair at maximum
- 2240 mm with both leaves open
- Lead time
- 8 weeks from survey to installation
Configurations
- Single left or right hand
- Equal pair
- Unequal pair 1/3 to 2/3
- Inward or outward opening
- Rebated or flush meeting stile
- Passive leaf lockable or free swinging
Glass
- 28 mm laminated double
- 44 mm triple
- Glazing lines matched across both leaves
- Obscure or clear
- P5A security laminate
Finishes
- 213 RAL colours
- Matt, satin or textured
- Dual colour inside and out
- Finish carried across side panels and top lights
Hardware
- 5-point lock on the active leaf
- Shootbolts on the passive leaf
- TS007 3-star anti-snap cylinder
- Matching pull handles to 1800 mm
- Flush pull on the passive leaf
- Drop-down threshold seal
Performance
- Thermal
- Uw from 1.5 W/m2K on a pair, 1.4 on a single
- Acoustic
- Rw 36 dB on a pair, 38 dB on a single
- Security
- PAS 24:2022 on both leaves · Secured by Design option
- Weather
- BS 6375 · water tightness Class 6A at 250 Pa on pairs, Class 7A at 300 Pa on singles
- Wind resistance
- Class C4 at 1600 Pa
