Side panels
A fixed glazed or solid panel welded to the door frame, adding width and daylight without a second leaf to lock.
- Panel width
- 250 to 900 mm
- Door and two panels
- To 3000 mm
- Lead time
- 8 wks
- Delivered with the door as one unit
- PAS 24 carried across the assembly
- Insulated solid infill, 1.0 W/m²K

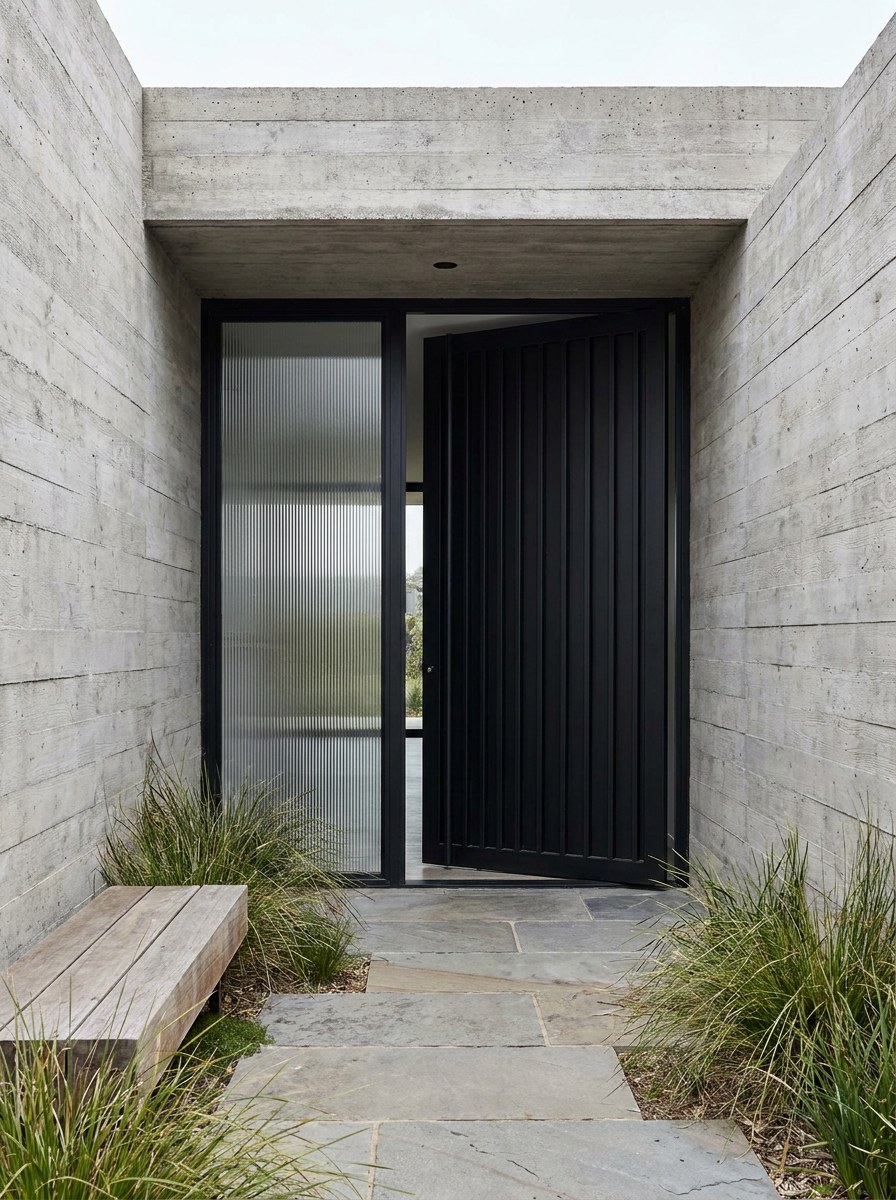

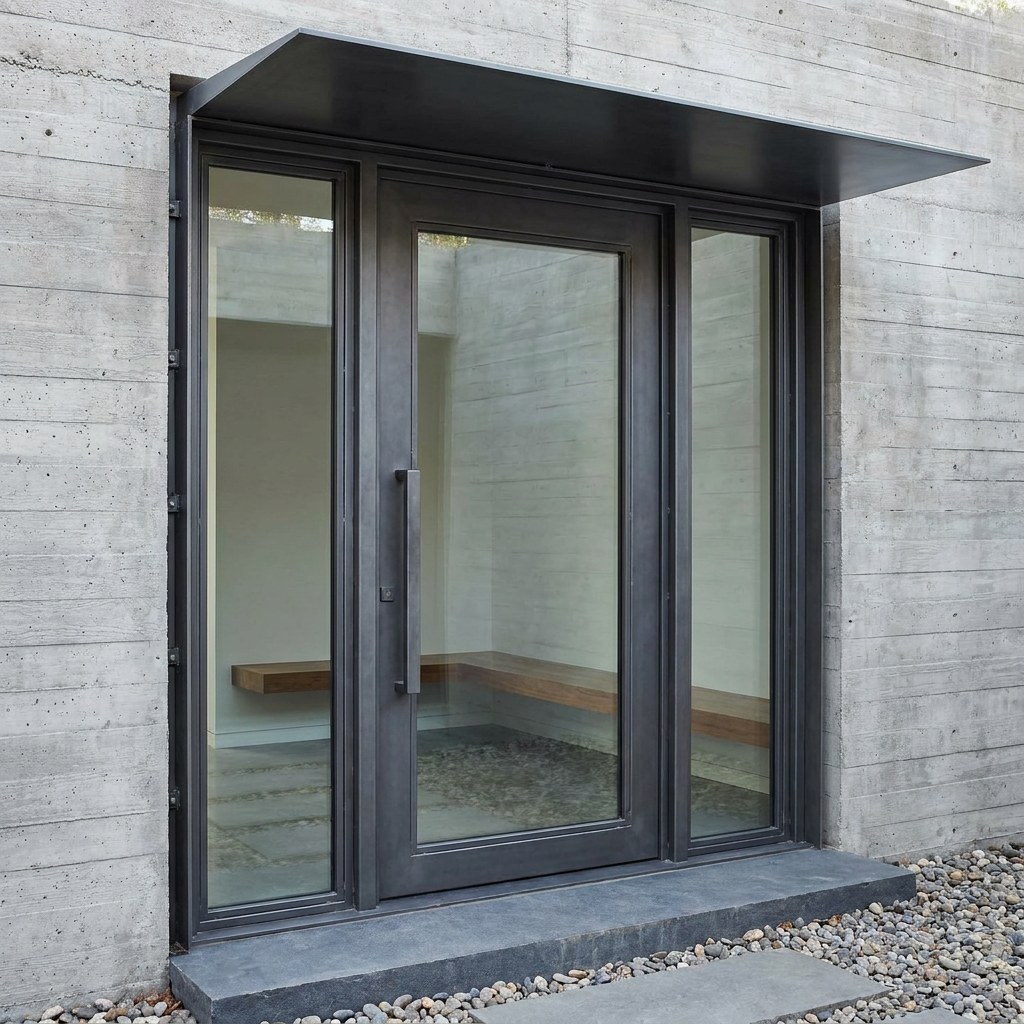

The whole side panels square on and filling the frame, in the one side or both sides configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 3000 mm structural opening.
3:4

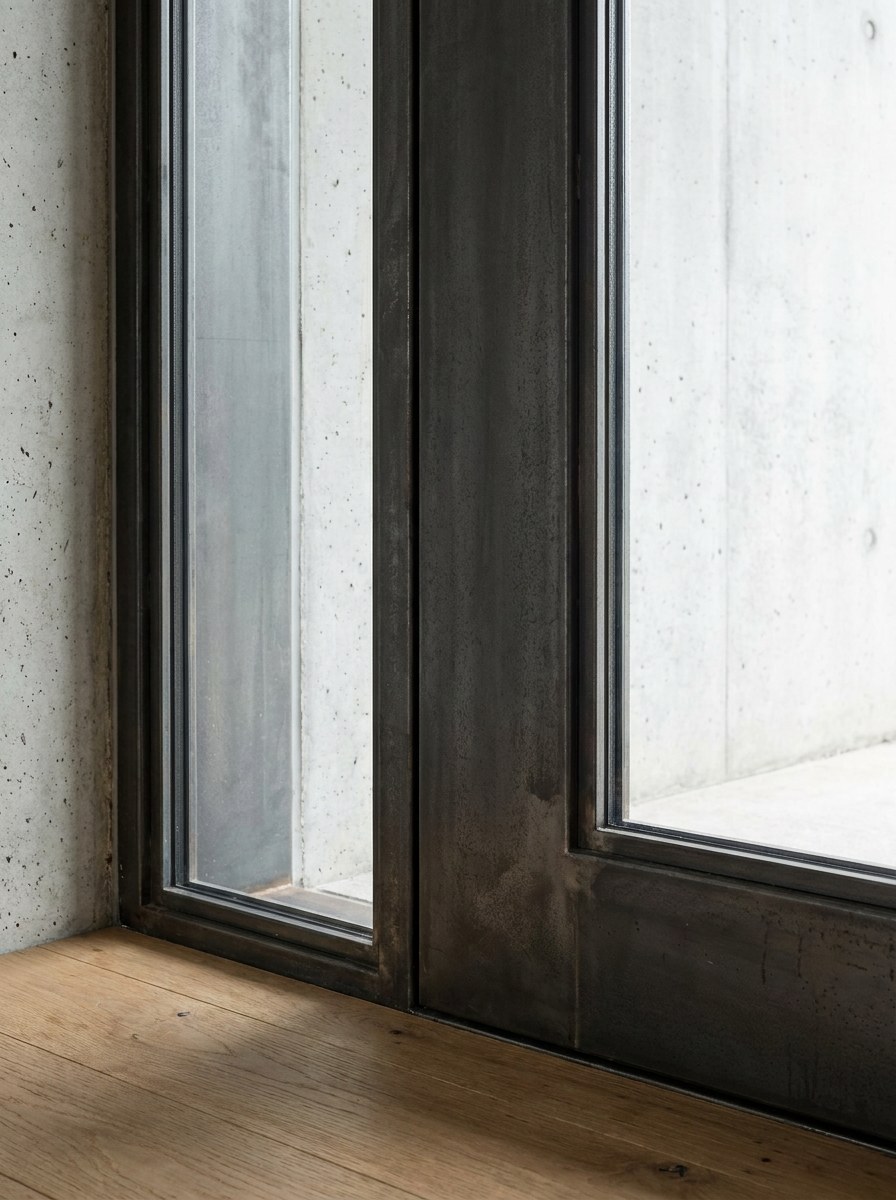

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 8 no. per panel into structural reveal sightline can be measured off the frame, with the background thrown out of focus.
1:1
The hand-level detail: no moving hardware photographed in use on the 213 ral colours finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3

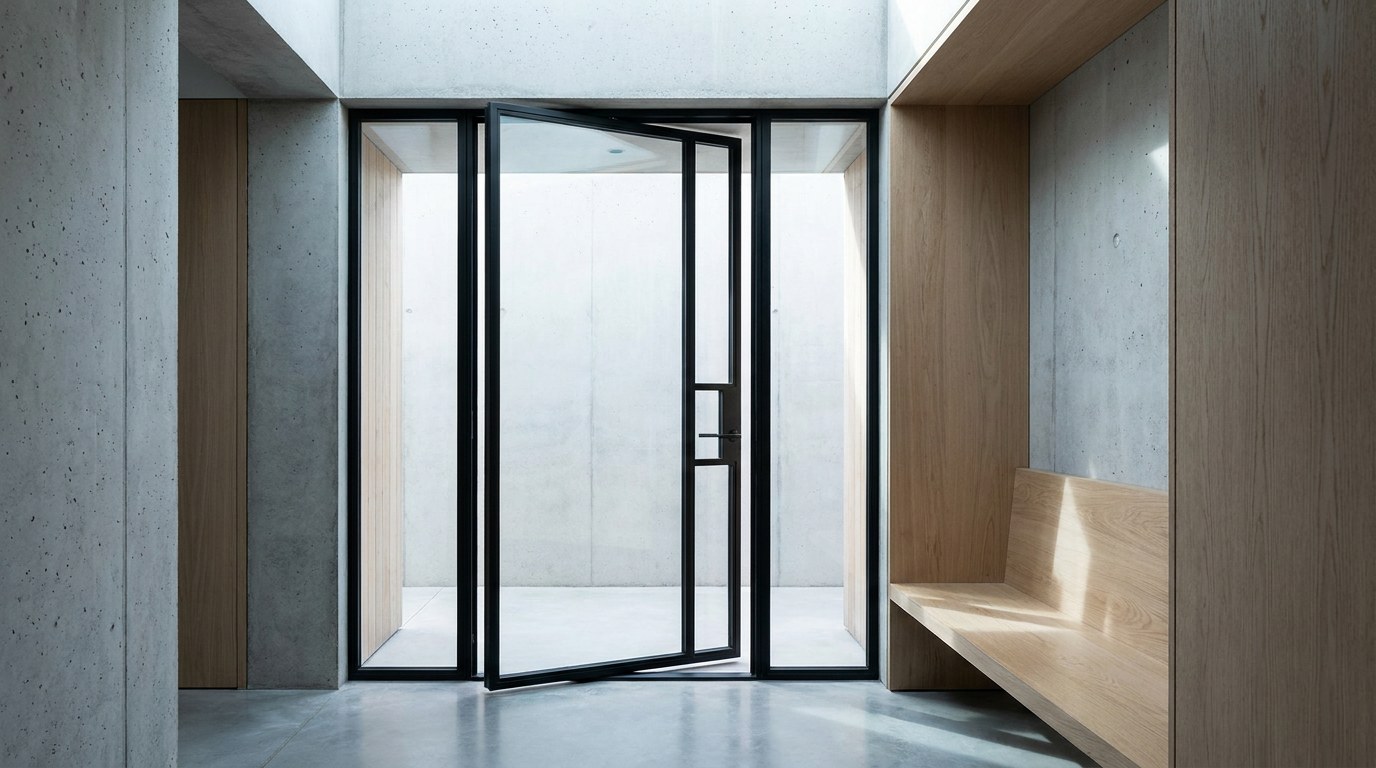

From inside the room looking out through the side panels, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The side panels at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Side panels
Description
Side panels take a 1200 mm door up to a 3000 mm structural opening and put light into the hall. They are welded to the door frame as one unit, so there is no site joint and nothing moves independently of the door. The mullion between panel and door reads 55 mm. Glazed panels are laminated on both leaves to hold PAS 24 across the assembly. Solid steel infill is an option where the panel backs onto a boot room or a meter cupboard.
Specify it when
Openings from 1500 to 3000 mm where you want daylight beside the door and only one leaf to lock, seal and adjust.
Specification
- Width range
- 250 to 900 mm per panel
- Height
- Matched to the door leaf, to 2700 mm
- Mullion face width
- 55 mm
- Construction
- Welded to the door frame, delivered as one unit
- Glazing
- 28 mm laminated double, 8.8 mm minimum outer leaf
- Solid infill option
- 3 mm steel plate over insulated core, 40 mm overall
- Maximum assembly, door plus two panels
- 3000 mm structural opening
- Frame anchors
- 8 no. per panel into structural reveal
- Lead time
- 8 weeks from survey, welded and delivered with the door
Configurations
- One side or both sides
- Glazed, solid, or solid to a plinth height
- 1 to 3 glazing bar divisions
- Bar spacing matched to the door or set independently
- Full height or over a 300 mm plinth
Glass
- 28 mm laminated double
- 44 mm triple
- Obscure, reeded or sandblasted
- P5A security laminate
- Low-iron for pale interiors
Finishes
- 213 RAL colours
- Matched to the door as standard
- Matt, satin or textured
- Dual colour inside and out
Hardware
- No moving hardware
- Concealed frame anchors
- Capped bead or structural silicone glazing
- Trickle vent option in the head
Performance
- Thermal
- Up 1.3 W/m2K glazed, 1.0 with the insulated solid infill
- Acoustic
- Rw 40 dB glazed with acoustic laminate
- Security
- Laminated both leaves to carry PAS 24 across the assembly
- Weather
- BS 6375 · water tightness Class 9A at 600 Pa · air permeability Class 4
