Steel windows
Hot-rolled steel windows slim enough to replace 1930s W20 casements and sit right in a period reveal.
- Sightline
- 42 mm
- Fixed light
- To 1500 x 2800 mm
- Lead time
- 7–8 wks
- 25 mm welded glazing bars
- Trickle vents built into the frame
- Galvanised, then powder coated
The whole steel windows square on and filling the frame, in the fixed light configuration, shot level in flat overcast light against a plain wall so the proportion and the frame-to-glass ratio can be read without perspective. Unit at 1500 x 2800 mm.
3:4

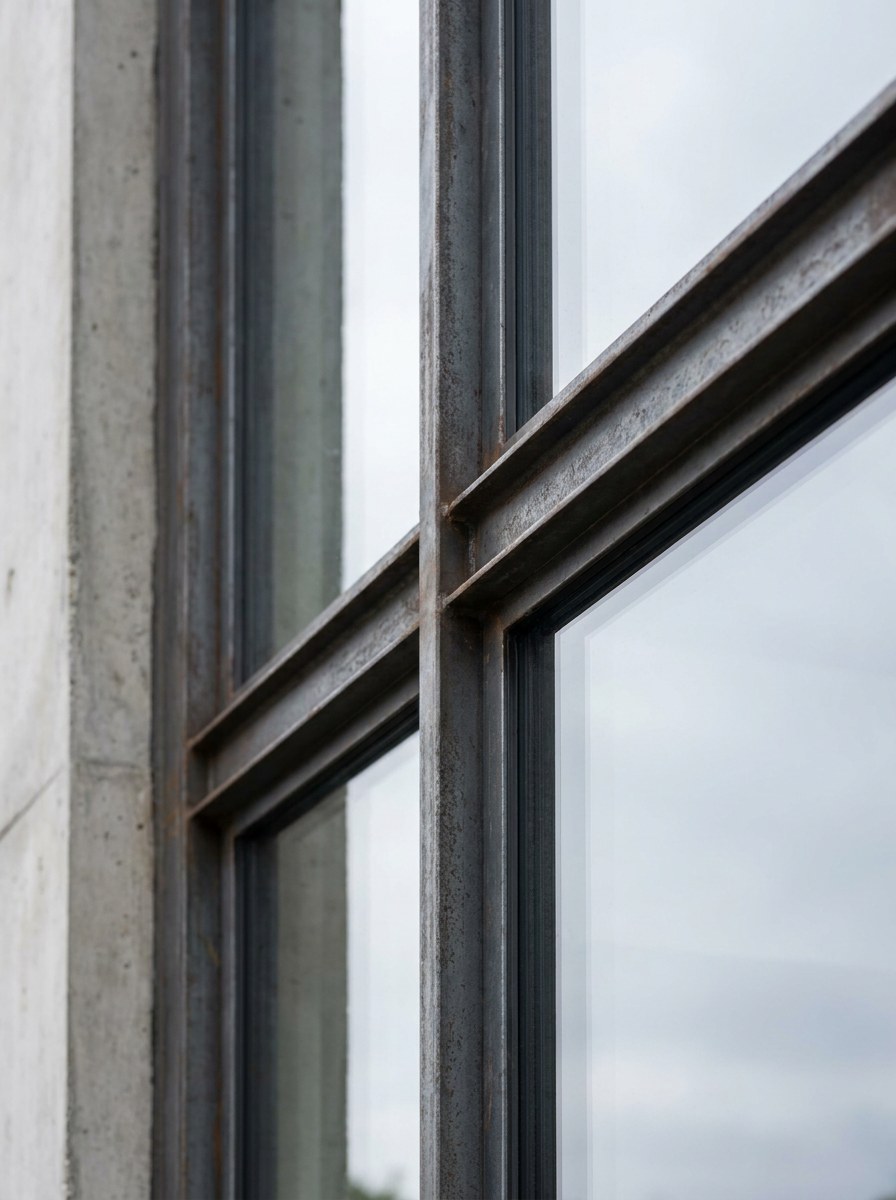

Close detail of the meeting line at eye level in raking light, tight enough that the joint and the seal are legible and the 42 mm frame, 52 mm mullion and transom, 25 mm welded glazing bar sightline can be measured off the frame, with the background thrown out of focus.
1:1
The hand-level detail: peg stays and casement fasteners in solid brass or bronze photographed in use on the hot-dip galvanised then 80 micron powder coat finish, close enough to show the surface texture and the fixing, with a hand on the handle for scale.
4:3
From inside the room looking out through the steel windows, the unit open where it opens, late afternoon light on the floor, so the product is seen the way it is lived with rather than the way it is sold.
16:9
The steel windows at dusk from outside, closed, the room lit behind the glass, so the finish and the glass line read against the light.
3:4
Specifications & options
Steel windows
Description
Steel windows are made from hot-rolled sections, welded at the corners and dressed flat, so no joint shows. A 42 mm frame face holds a 24 to 32 mm sealed unit and reads close to the 1920s and 1930s profiles it usually replaces. The thermal break sits inside the section rather than behind a wider face, which is how the line is kept at 42 mm. Fixed lights run to 1500 x 2800 mm. Opening lights are side-hung, top-hung or hopper, and every opening light is made to PAS 24.
Specify it when
The right choice for replacing corroded W20 casements, for period elevations where a 70 mm aluminium or uPVC frame sits wrong in the reveal, and for any opening where the glass line matters more than the size of the hole.
Specification
- Profile
- Hot-rolled steel, 63 mm frame depth, 20 mm polyamide thermal break
- Sightline
- 42 mm frame, 52 mm mullion and transom, 25 mm welded glazing bar
- Maximum fixed light
- 1500 x 2800 mm
- Maximum opening light
- 900 x 2000 mm side-hung; 1400 x 800 mm top-hung
- Glazing rebate
- 24-32 mm sealed units, EPDM gasket both faces
- Weight
- 38 kg/m2 double glazed
- Ventilation
- Frame-integrated trickle vents, 5,000 mm2 equivalent area
- Finish system
- Hot-dip galvanised to BS EN ISO 1461, then 80 micron polyester powder coat
- Standards
- PAS 24 on opening lights, Secured by Design, BS 6375
- Guarantee
- 10 years
- Lead time
- 7-8 weeks from survey to installation
Configurations
- Fixed light
- Side-hung casement, in or out opening
- Top-hung casement
- Bottom-hung hopper
- Two- and three-light runs under one welded head
- Coupled bays and corner mullions
- Fixed light over opening light with a welded transom
Glass
- 24 mm double, low-E, argon filled
- 28 mm double with acoustic laminate for 41 dB
- 32 mm triple for 1.3 W/m2K
- Obscure: reeded, fluted, sandblasted
- Restoration and low-iron glass for period elevations
- Welded 25 mm glazing bars, glazed both faces
Finishes
- Hot-dip galvanised then 80 micron powder coat
- 213 RAL colours
- Matt, satin or gloss
- Fine-texture finishes
- Dual colour, different inside and out
- Marine-grade specification for coastal sites
Hardware
- Peg stays and casement fasteners in solid brass or bronze
- Multi-point espagnolette locking on opening lights
- Friction stays, 90 degree or egress rated
- Restrictors to 100 mm
- Trickle vent covers colour-matched to frame
- Key-locking handles where PAS 24 applies
Performance
- Thermal
- Uw 1.4 W/m2K with 28 mm double; 1.3 W/m2K with 32 mm triple
- Acoustic
- 36 dB Rw standard, 41 dB Rw with acoustic laminate
- Security
- PAS 24 and Secured by Design on opening lights
- Weather
- BS 6375: water 600 Pa class 9A, wind class C4, air permeability class 4
